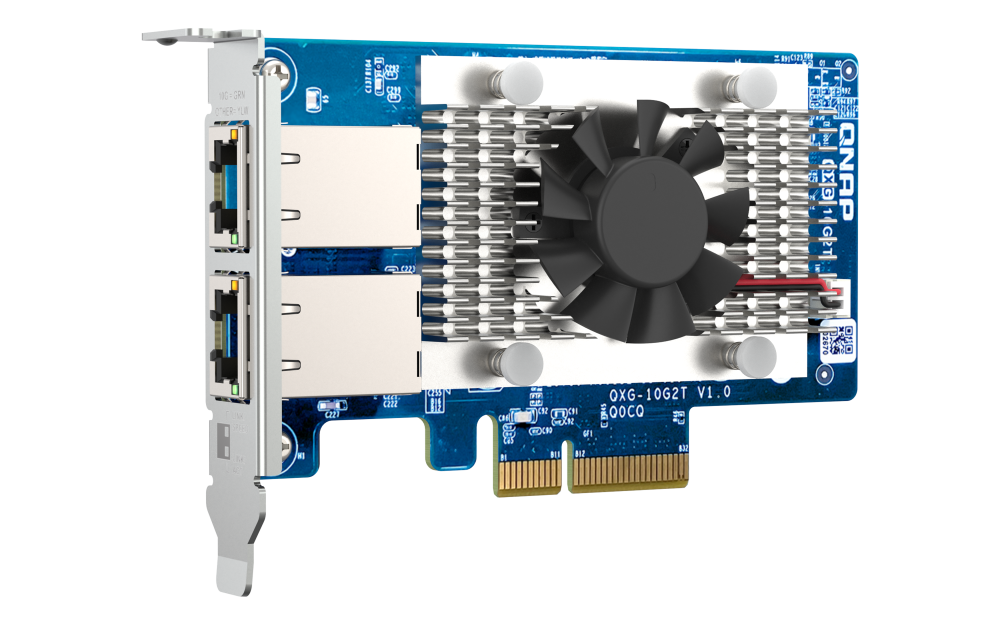

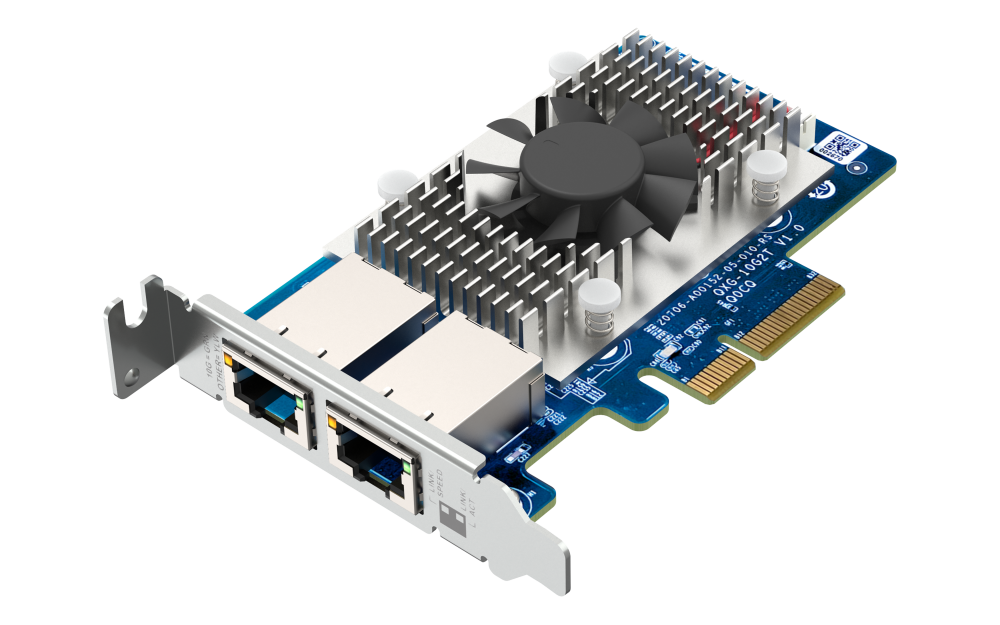

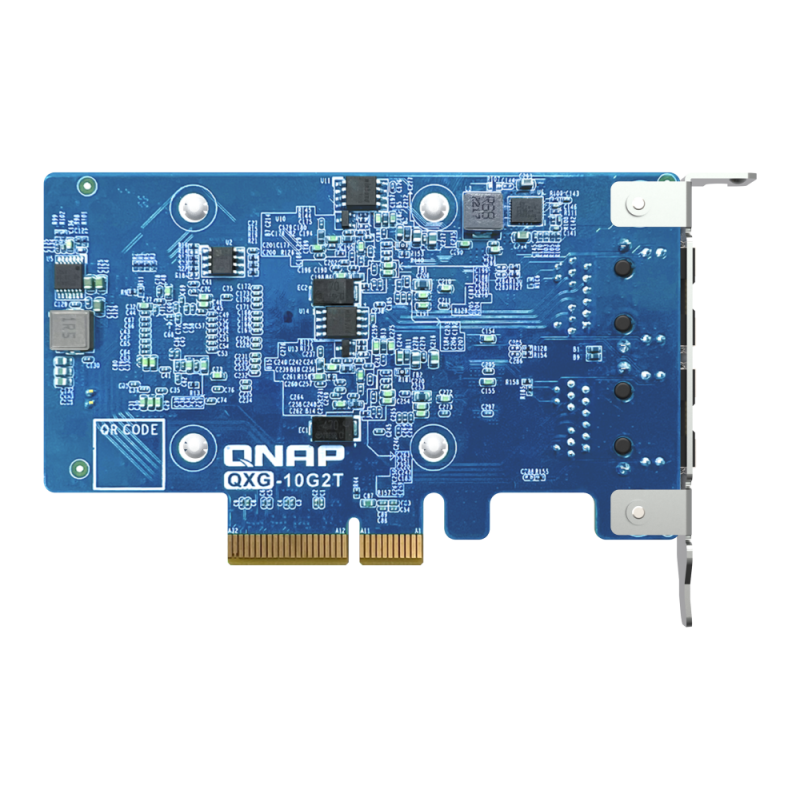

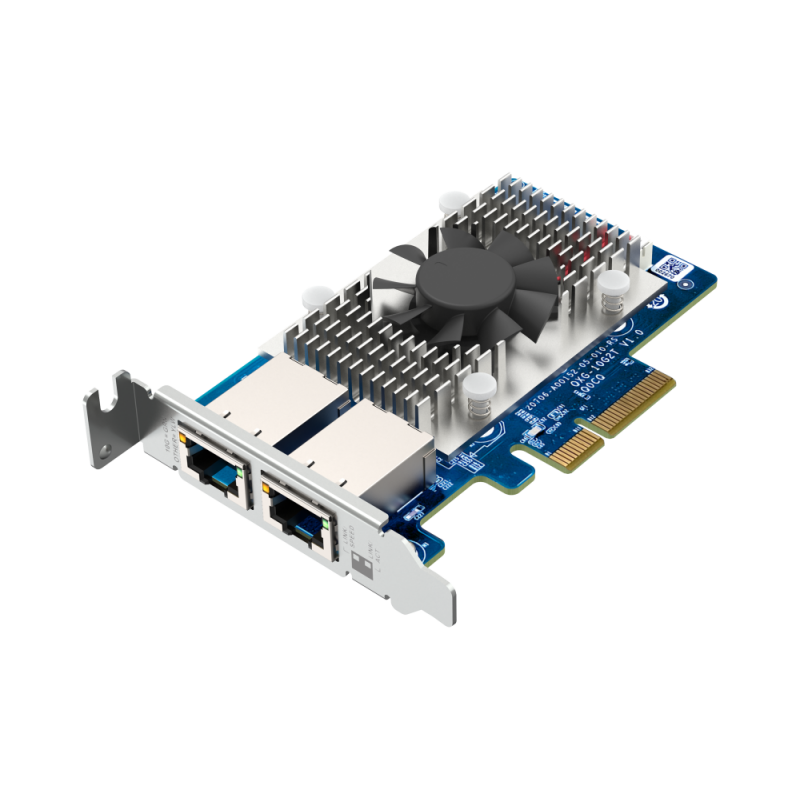

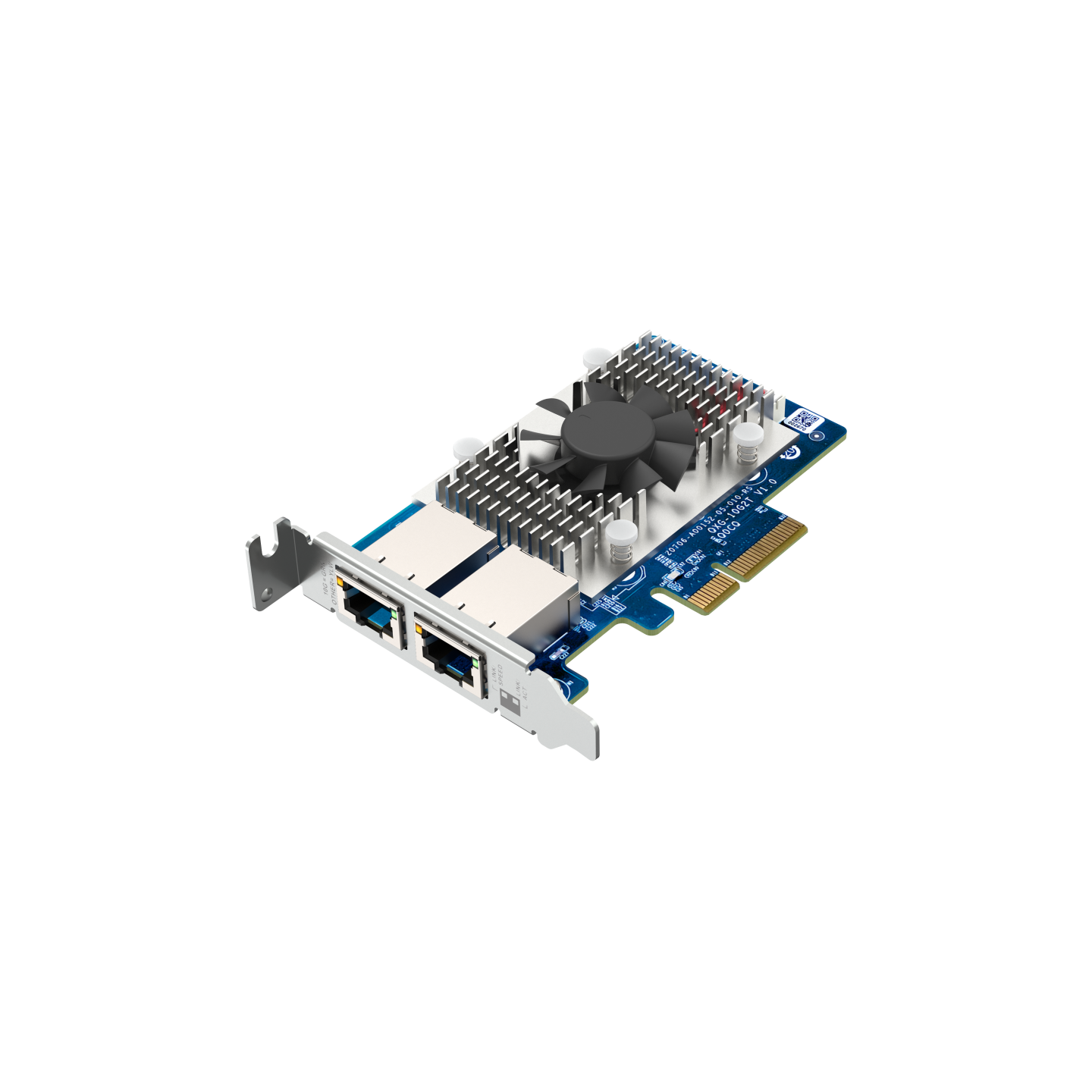

QNAP QXG-10G2T

Name: QNAP QXG-10G2T
Brand: QNAP
SKU: QXG-10G2T
Availability: OutOfStock
Rating: 5 (1 reviews)

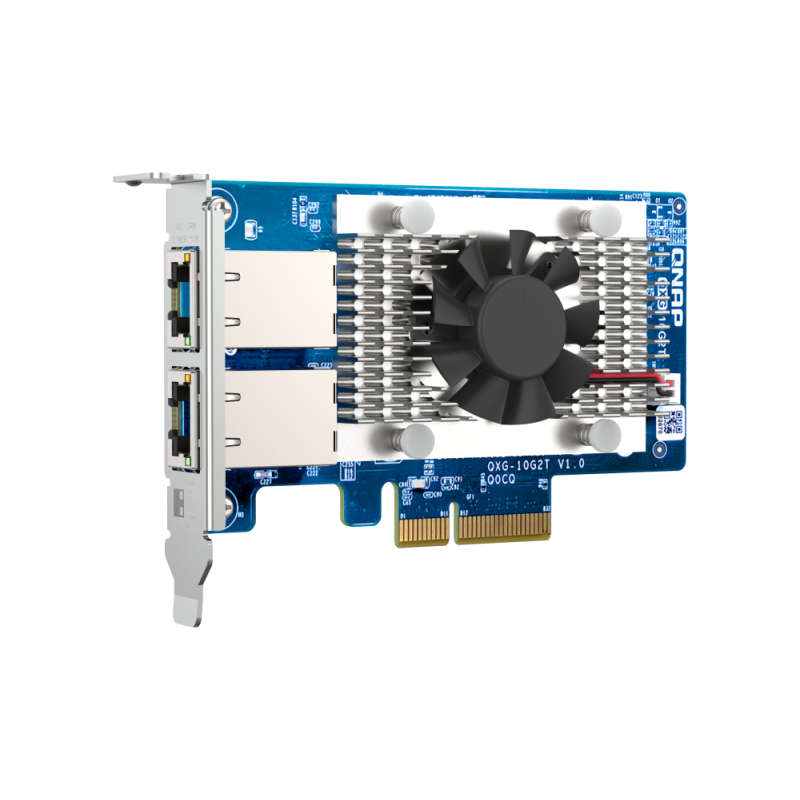

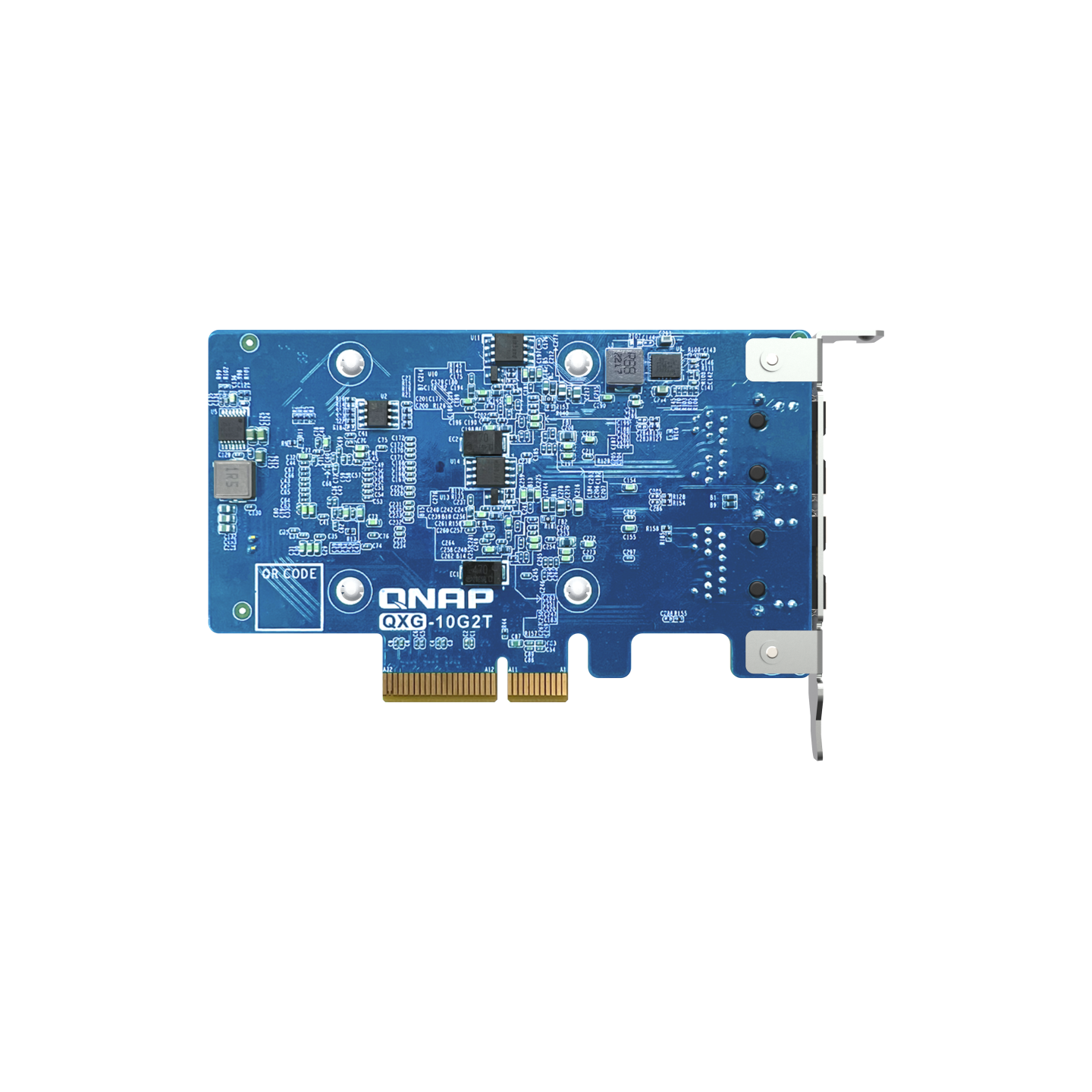

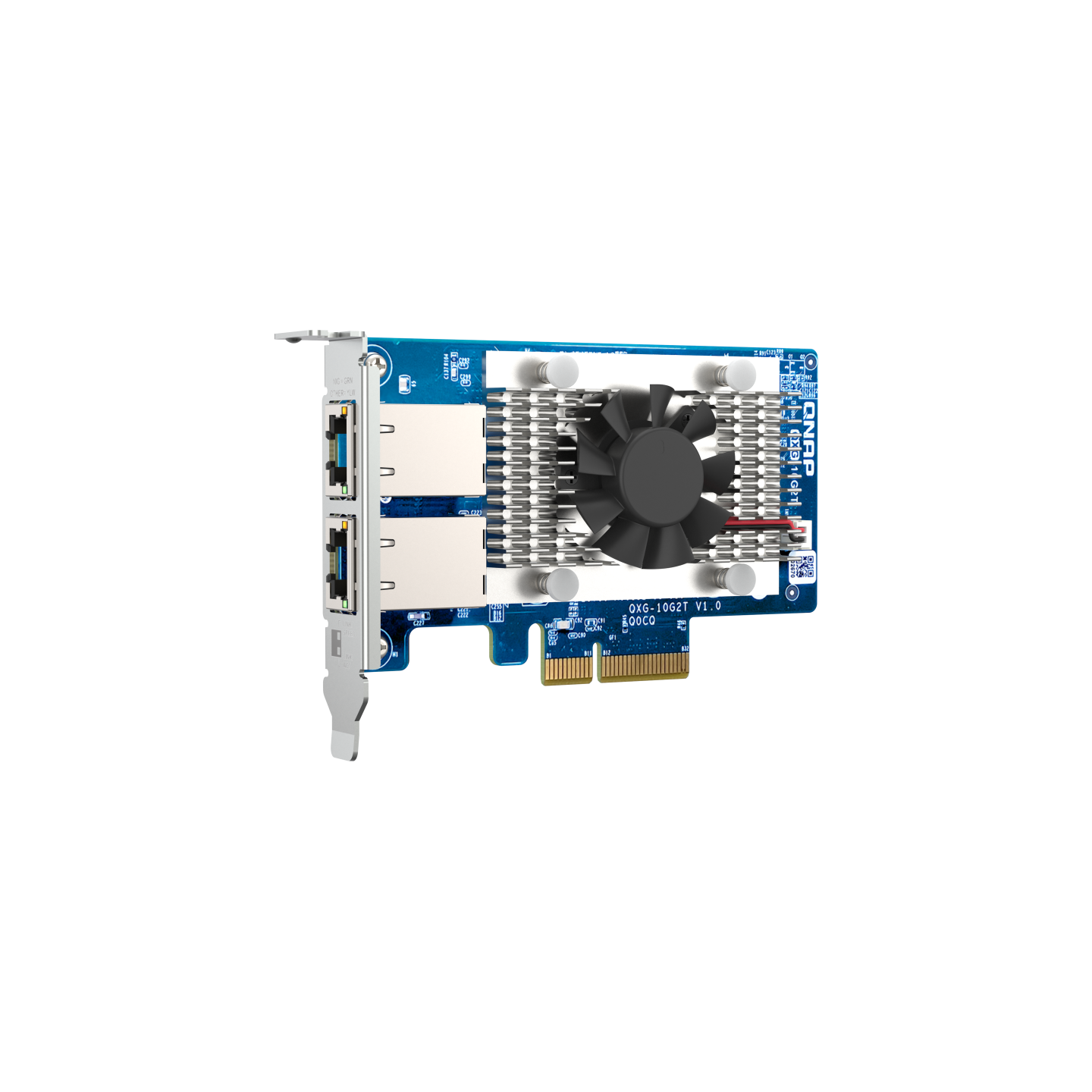

Dual-port, 5-speed 10 GbE (RJ45) network expansion card

Contáctenos por este producto

The QXG-10G2T is a highly energy efficient and cost-effective 10 GbE network expansion card, which is suitable for a team requiring simultaneous data access with multiple members, or a photographer/videographer requiring super-fast data transmission.

5-speed

Supports five speeds (10GbE / 5GbE / 2.5GbE / 1GbE / 100MbE).

NAS and PC

The QXG-10G2T can be installed in a QNAP NAS or Windows® PC.

Marvell® AQtion Controller AQC107

Highly energy efficient and cost-effective.

PCIe 3.0

PCIe Gen 3 x4 provides up to 32 Gbps transfer speeds.

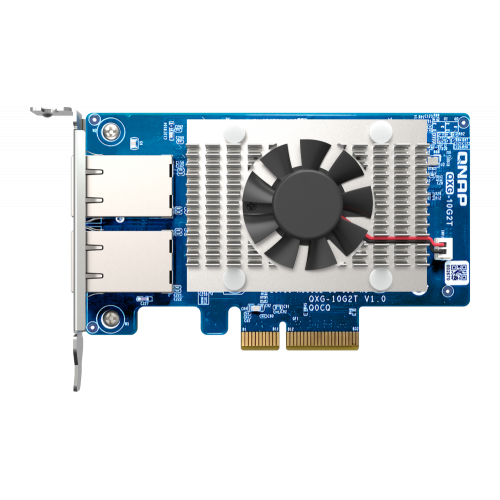

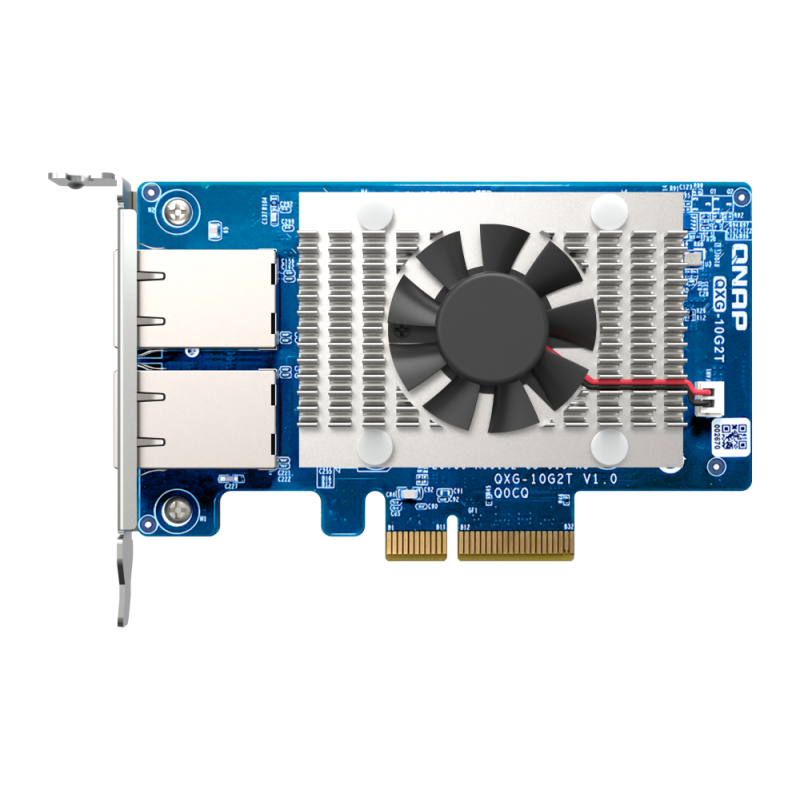

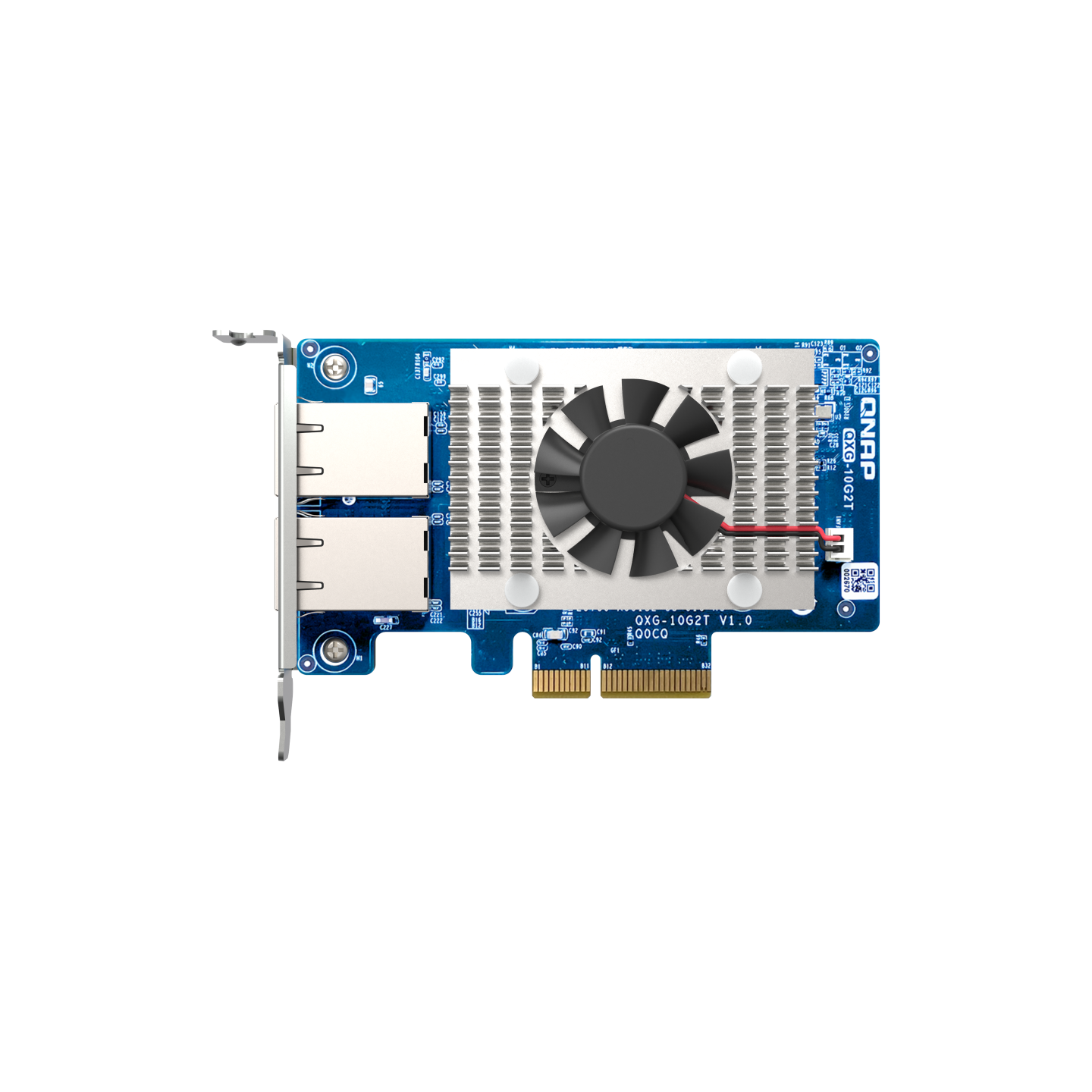

Efficient cooling module

Keeps the QXG-10G2T cool and maintains high performance.

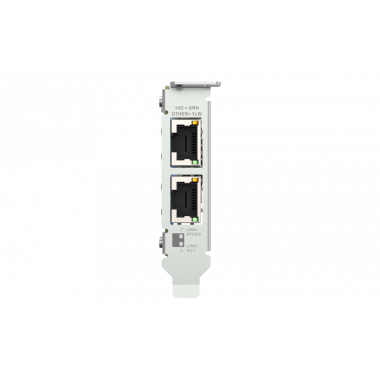

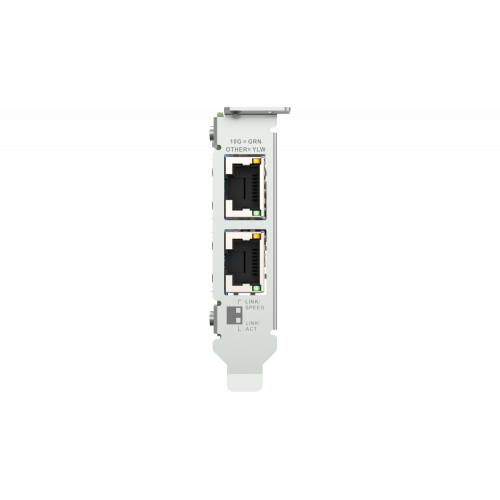

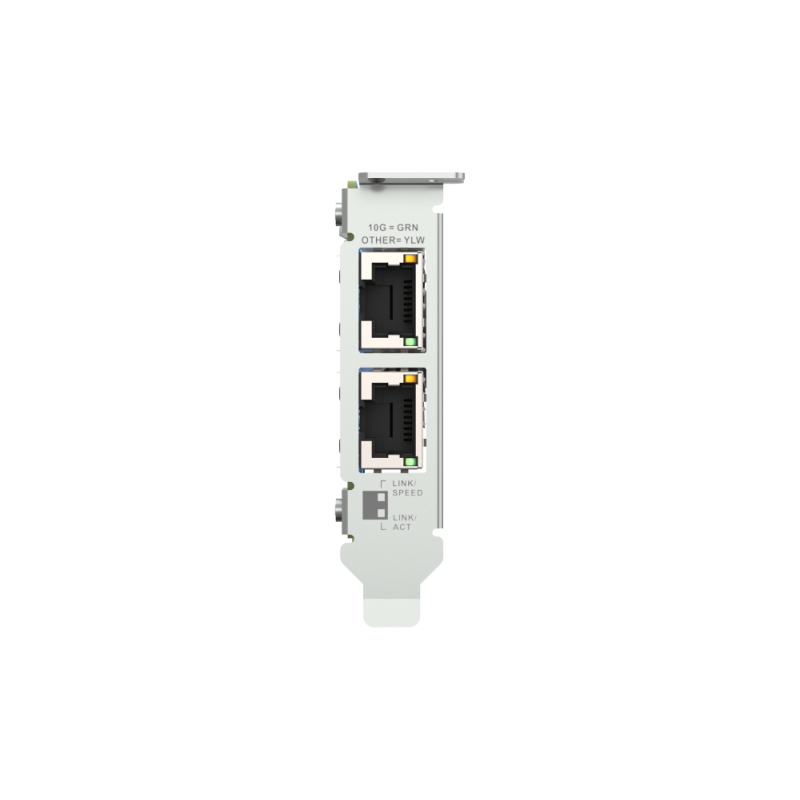

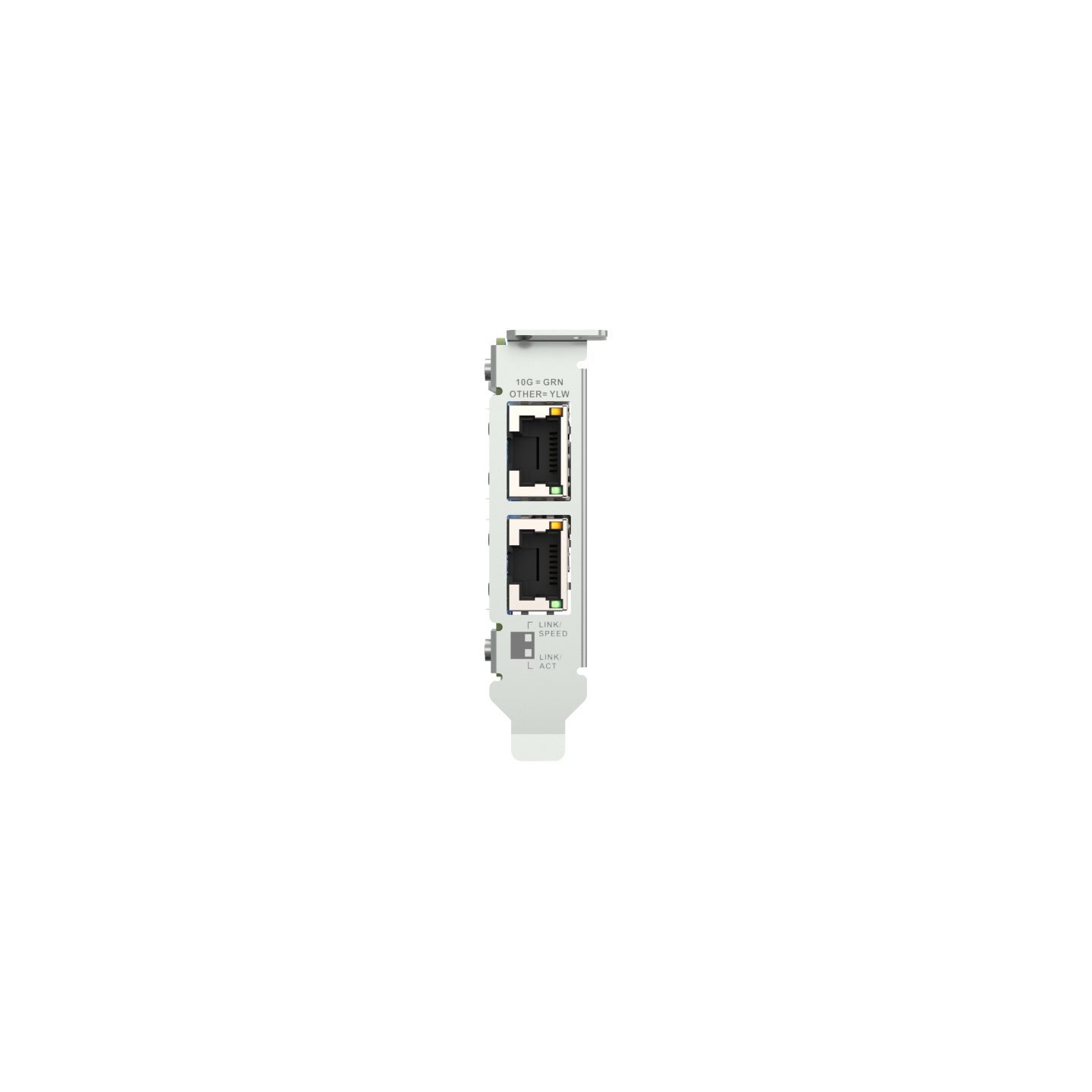

LED indicators

Monitor the real-time status of ports with handy LED indicators.

Detalle de productos

Descarga

Hoja de Datos

Dual-port, 5-speed 10 GbE network expansion card

Descarga: (144.9KB)

Diapositiva

Q1T0Ql-WIUs

Descarga: (3.84MB)

Dual-port, 5-speed 10 GbE network expansion card

Dimensiones (Longitud x Anchura x Altura) 111.5 mm length × 1-slot width × Low-profile (The dimension is based on PCBA size × not including the bracket) mm

Controlador Marvell AQtion AQC107

Número de puertos 2 NBASE-T (RJ45)

Conector NBASE-T (RJ45)

PCIe y carriles PCIe 3.0 x4

Velocidades de transmisión 10Gbps/5Gbps/2,5Gbps/1Gbps/100Mbps

Estándares IEEE IEEE 802.3an

IEEE 802.3bz

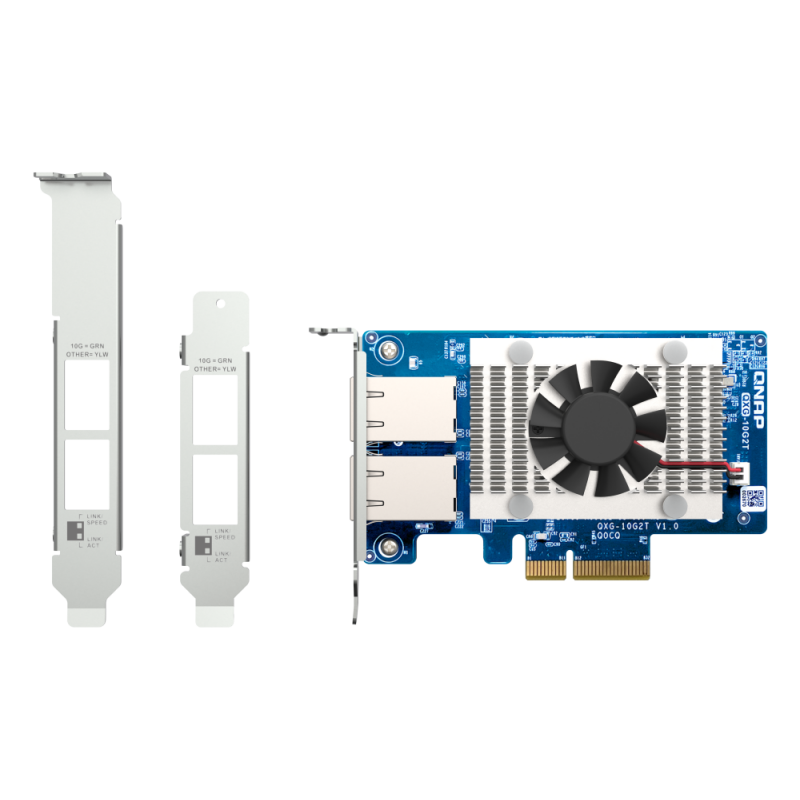

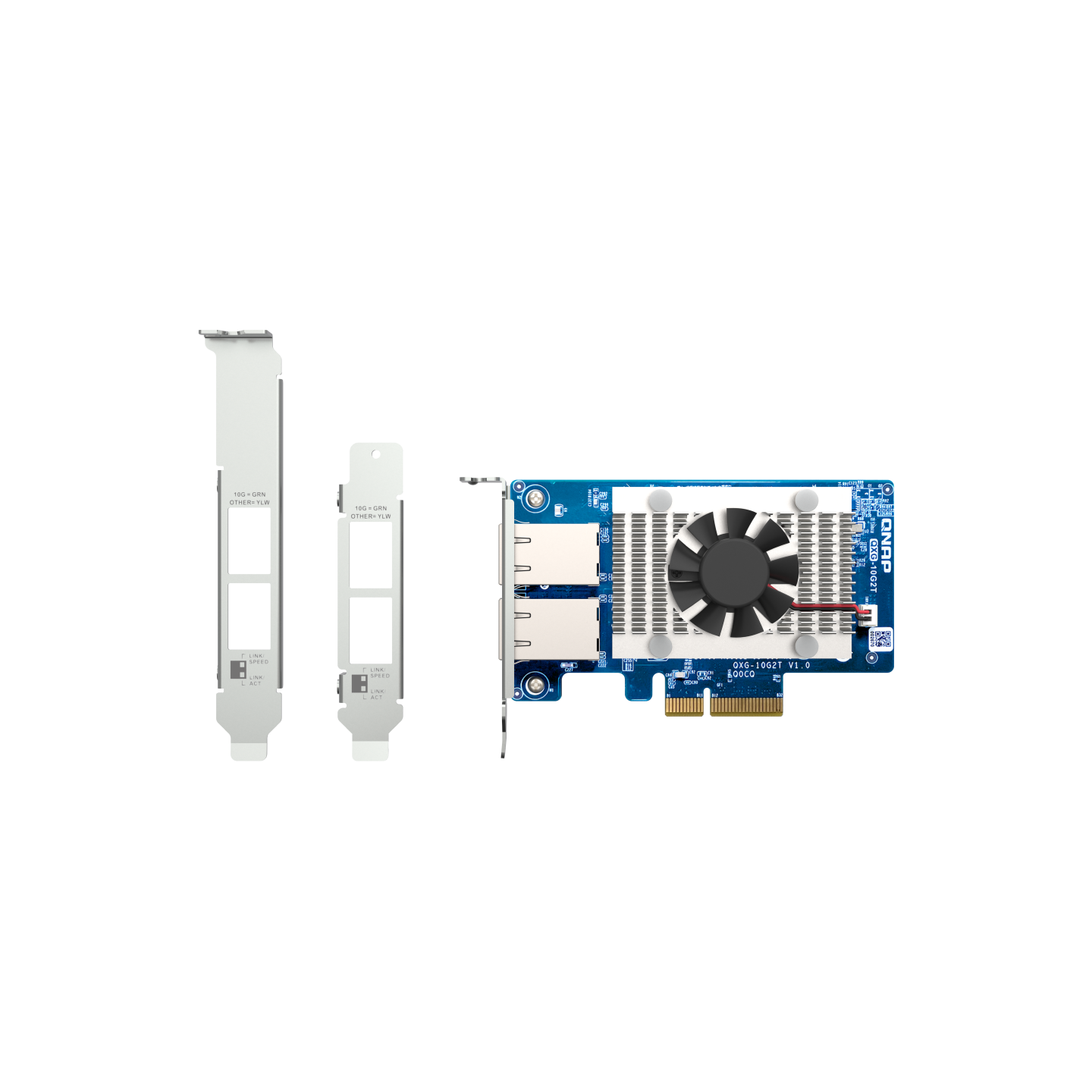

Soporte soporte de perfil bajo preinstalado; soportes de altura completa y especializados (para determinados NAS de QNAP) incluidos

Sistemas operativos de NAS compatibles At least QTS/QuTS 5.0.1.2430 build 20230614

NAS de QNAP compatible Modelos con ranura(s) PCIe (se necesita 1 ranura libre)

Compatibilidad con la distribución de Linux comercial de Ubuntu Linux 3.10 y posterior

Compatibilidad con RedHat Linux 3.10 y posterior
