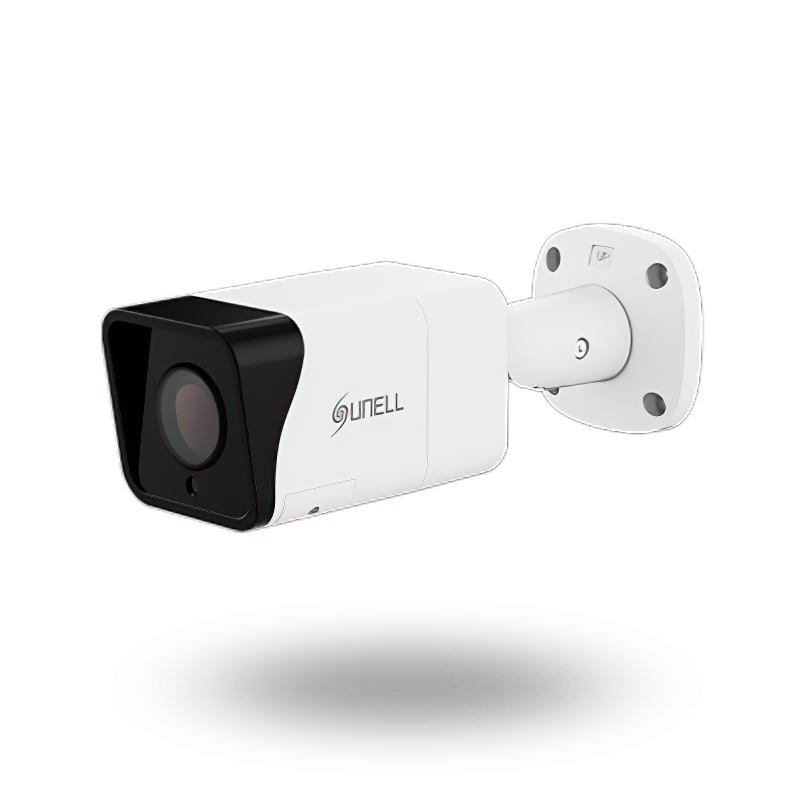

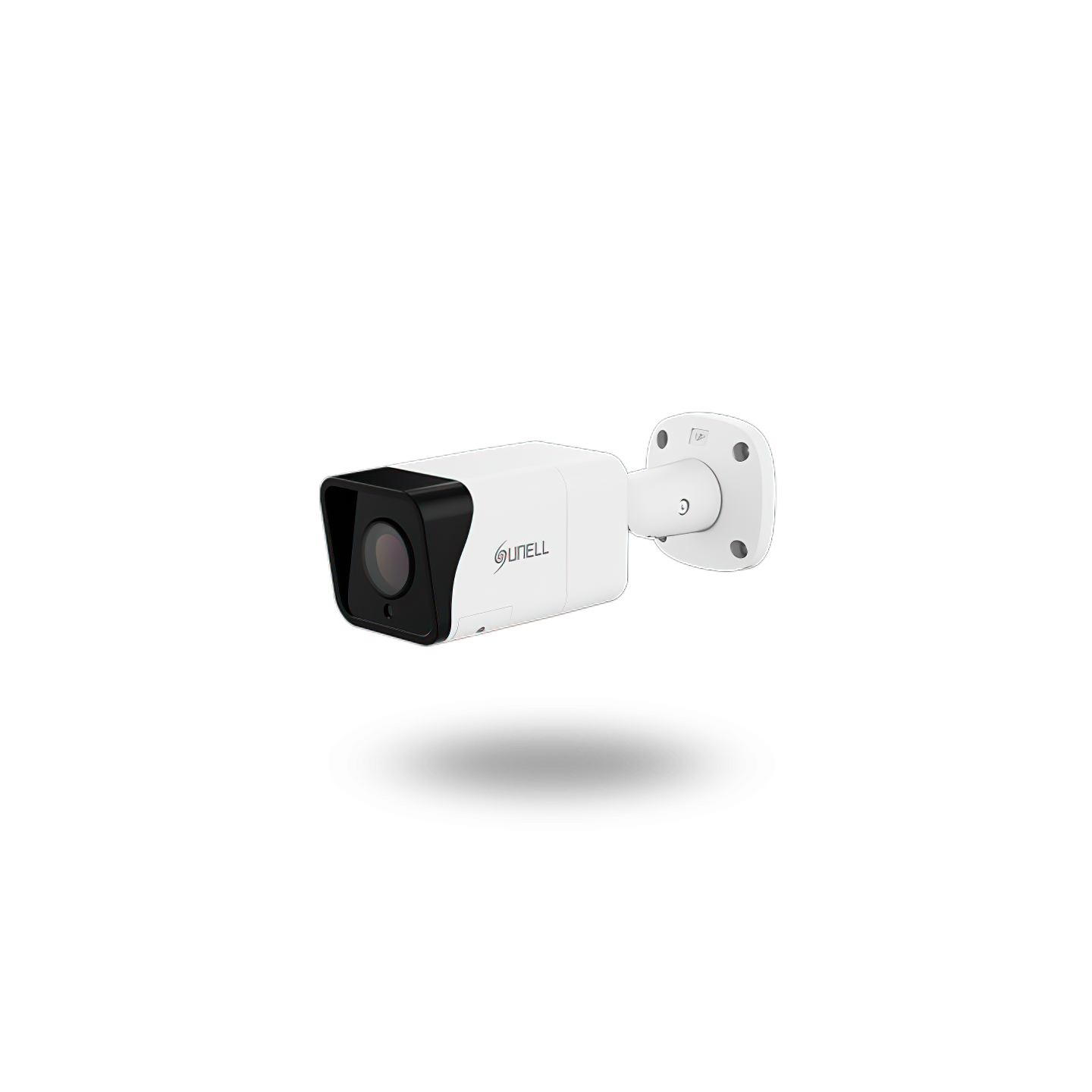

Cámara IP tipo bala varifocal de 4 MP IR 40m
Image Sensor 1/2.7” Progressive Scan CMOS
Max. Resolution 4MP (2560×1440)
Electronic Shutter Auto/Manual, 1/5 ~ 1/20,000s
Min. illumination Color: 0.03 Lux @ (F1.2, AGC ON) ,
B/W: 0 Lux @ (IR LED ON)
Day & Night IR cut filter
IR Distance Up to 40 m (131.2 ft)
IR On/Off Control Auto/Manual
Angle Adjustment Pan: 0˚ ~ 360˚, Tilt: 0˚ ~ 90˚, Rotation: 0˚ ~ 360˚
Lens Type Motorized lens
Iris Type Fixed Iris
Focal Length 2.7 ~ 13.5 mm
Aperture F1.6
Field of View H: 95.8° ~ 30°, V: 52.4° ~ 16.9°
Streaming Capability 3 Streams
Stream/Frame Rate
Stream1: 2560×1440, 2304×1296, 1920×1080,
1280×720 @ 25fps
Stream2: D1, VGA, 640×360, CIF, QVGA @ 25fps
Stream3: VGA, CIF, QVGA @25fps
Bit Rate Control CBR/VBR
Bit Rate
Stream1: 100kbps~6Mbps
Stream2: 100kbps~6Mbps
Stream3: 100kbps~3Mbps
Region of Interest Off/On (8 Zone, Rectangle)
Image Adjustment Brightness, Sharpness, Contrast, Saturation
Aisle Mode Support
Mirror Support
White Balance Auto/Manual
Day/Night Setting Auto, Day, Night, Time
Smart IR Support
Noise Reduction 2D/3D DNR
Image Enhancement HLC, BLC
Wide Dynamic Range DWDR
S/N Ratio 55dB
Motion Detection Support
Privacy Masking Support
Multi-Object Detection Supports face, human and vehicle detection
Intelligent Analysis
Intrusion, Single line crossing, Double line crossing,
Loitering, Wrong way
Support alarm triggering by specified target types
(human and vehicle)
Protocols
IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP,
RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS,
UPnP, FTP, ARP, SNMP, TLS/SSL
Interface Protocol ONVIF, SDK, CGI
Streaming Method Unicast
Max. User Access 10 Users
Web Viewer <IE11, Chrome, Firefox, Microsoft Edge
Language English, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian. Default: English
Network Interface 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port
Reset Button Support
SD Card Slot Built-in, up to 256GB
Power Supply DC12V (-15%~+25%)/POE (IEEE 802.3af)
Power Consumption Max 6 W
Operating
Temperature -30°C ~ 55°C (-22°F ~ 131°F )
Operating Humidity Less than 90% RH
Ingress Protection IP67
Certifications CE/FCC
Casing Metal
Dimensions 232 × 80 × 80mm (9.13" × 3.15" × 3.15")
Net Weight 0.76 kg (1.68 lb)
