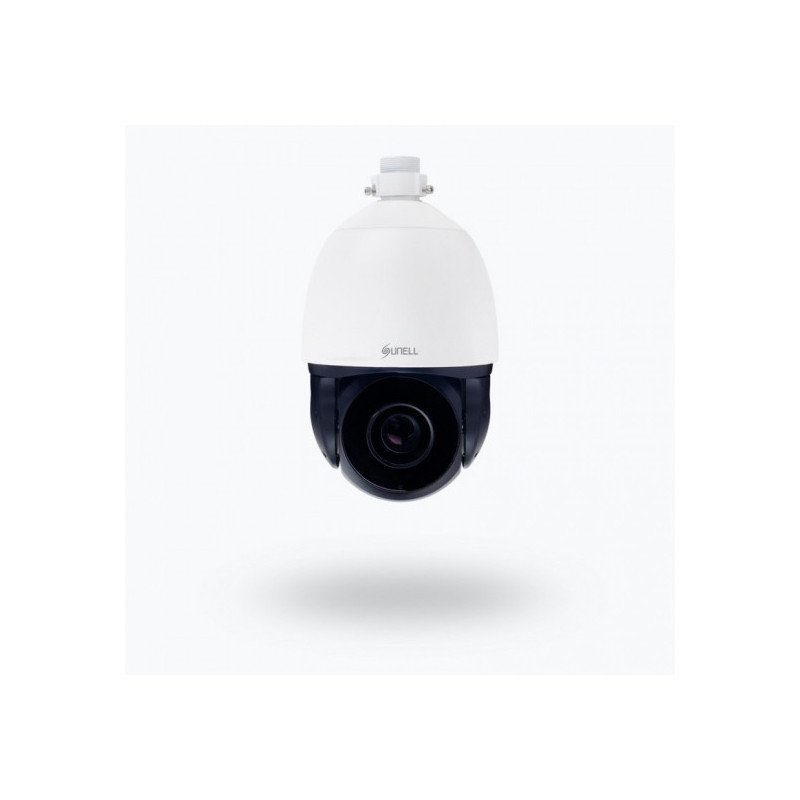

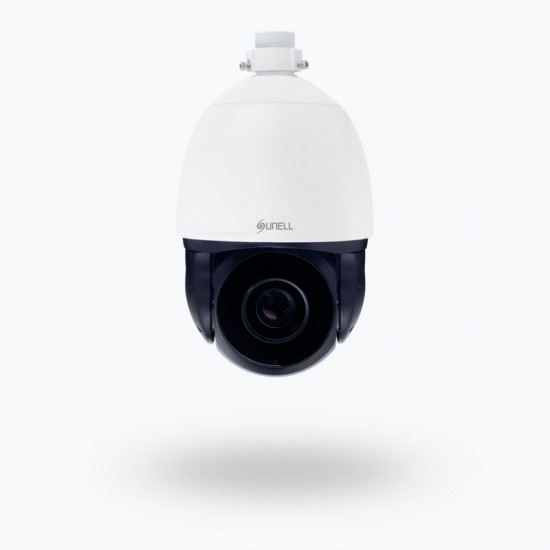

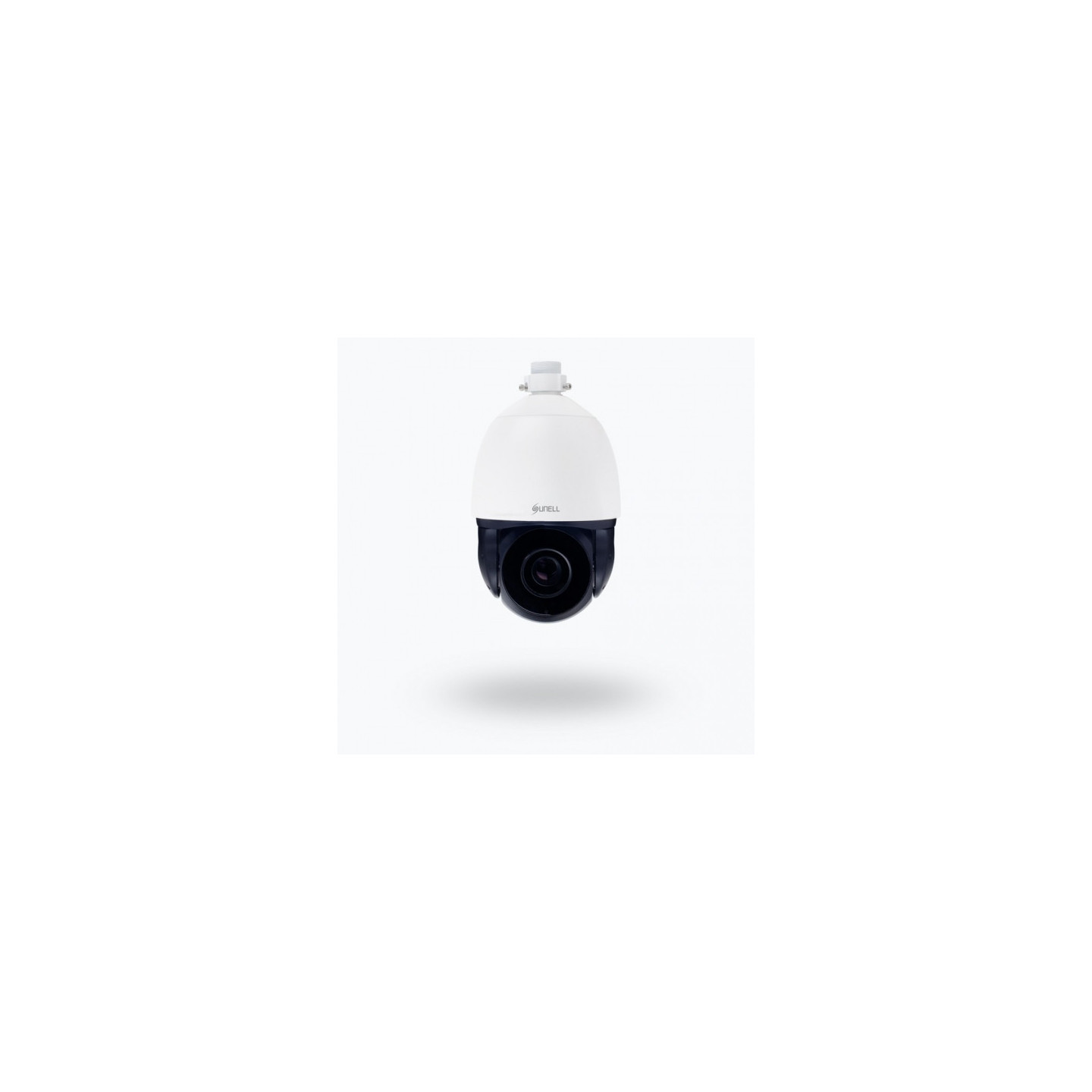

SUNELL SN-IPS57/30MDL/ZSD30

Camera

Image Sensor 1/2.8” Progressive Scan CMOS

Effective Pixels 2048(H)x1536(V)

Electronic Shutter Auto/Manual, 1/5 ~ 1/20,000s

Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON),

B/W: 0 Lux @ (IR LED ON)

S/N Ratio 55 dB

Day/Night Auto(ICR)/Day / Night/Timing

Wide Dynamic Range WDR 120 dB

IR Range Smart IR, Up to 400 m (1312.34 ft)

IR On/Off Control Auto/Manual

Lens

Focal Length 4.5 ~ 135 mm

Max. Aperture F1.6 ~ F4.4

Angle of View H: 59.8° ~ 2.3°

Optical Zoom 30x

Digital Zoom 16x

Focus Control Auto/Manual

PTZ

Pan/Tilt Range Pan: 0° ~ 360° endless, Tilt: -10° ~ +90°

Manual Control

Speed Pan: 0.1° ~ 180°/s, Tilt: 0.1° ~ 90°/s

Preset Speed Pan: 180°/s, Tilt: 90°/s

Presets 400

PTZ Mode 6 Track, 12 Scan, 12 Tour (up to 32 presets per tour)

3D Positioning Support

Power-Off Memory Support

PTZ Status Display Support

Idle Motion Activate Preset/ Scan/ Tour/ Track if there is no

command in the specified period

Video

Streaming Capability 3 Streams

Stream/Frame Rate

Stream1: 2048×1536/1920×1080/1280×720 @25/30fps

Stream2: D1/VGA/640×360/CIF/QVGA @ 25/30fps

Stream3: VGA/CIF/QVGA @ 25/30fps

Bit Rate Control CBR/VBR

Bit Rate

Stream1: 200kbps~12Mbps

Stream2: 100kbps~6Mbps

Stream3: 100kbps~3Mbps

Image Enhancement HLC/BLC/Anti-shake/Defog /WDR

Noise Reduction 2D/3D DNR

Region of Interest Off/On (8 Zone, Rectangle)

Motion Detection Support

Privacy Masking Off/On (4 Area, Rectangle)

Audio

Audio Compression G.711, RAW_PCM

Bit Rate 8kbps(G.711), 16kps(RAW_PCM)

Network

Protocols

IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP,

RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS,

UPnP, FTP, ARP, SNMP

Interoperability ONVIF, SDK, CGI

Streaming Method Unicast

Max. User Access 10 Users

Edge Storage Local PC for instant recording, Micro SD card 256GB

Web Viewer <IE11, Chrome, Firefox, Microsoft Edge

Management

Software SunView

Intelligence

Auto Tracking Support

IVS

Perimeter, Single Virtual Fence, Double Virtual Fences,

Loiter, Multi Loiter, Object Left, Object Removed,

Abnormal Speed, Converse, Illegal Parking, Signal Bad

Interface

Ethernet 1 Ethernet (10/100 Base-T) RJ-45 Connector

Audio 1ch Input, 1ch Output

Alarm 7ch Input, 2ch Output

RS485 Support

CVBS Output Support

Reset Button Yes (Built-in)

Electrical

Power Supply AC24V/Hi-POE (Adapter optional)

Power Consumption Less than 40 W

Operating

Temperature

Starting Temperature: -40°C ~ 60°C (-40°F ~ 140 °F)

Working Temperature:-55°C ~ 60°C (-67°F ~ 140 °F)

Operating Humidity Less than 90% RH

Ingress Protection IP66, TVS4000V

Certifications CE/FCC

Casing Metal

Dimensions Φ226 × 362.8 mm (Φ8.9 × 14.28 inch )

Net Weight 5.2 kg (11.46 lb)
