Hardware

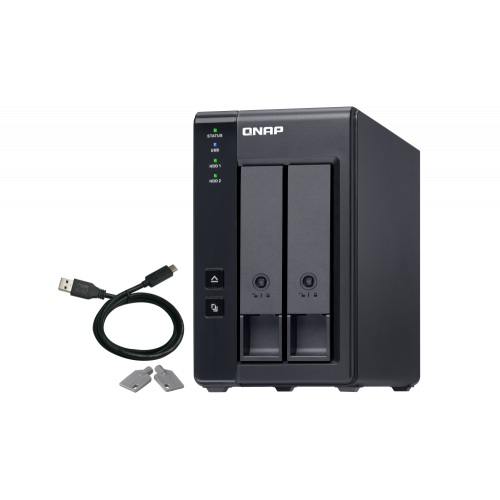

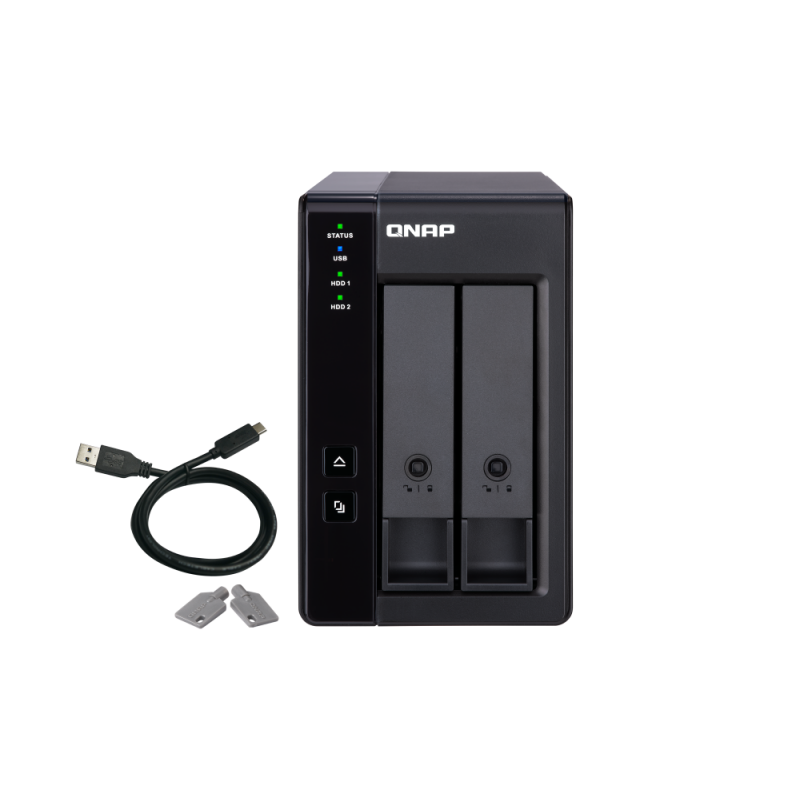

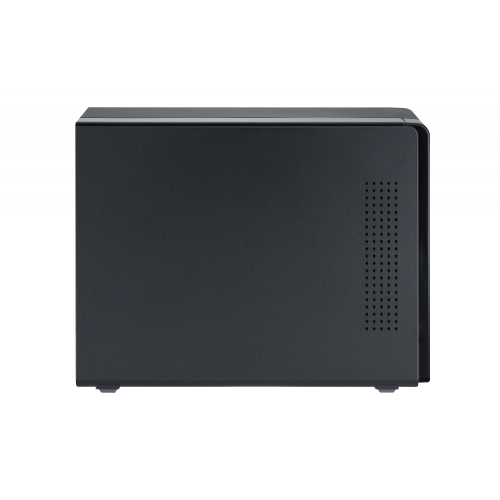

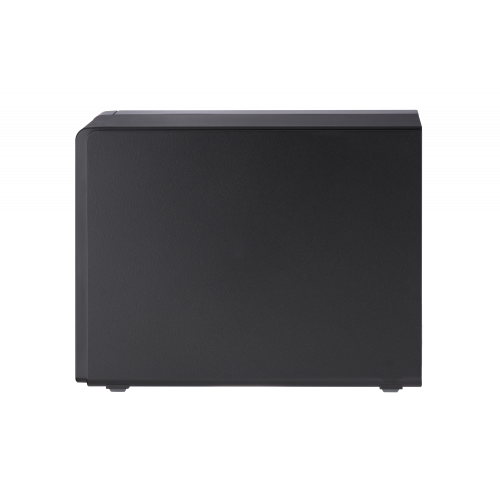

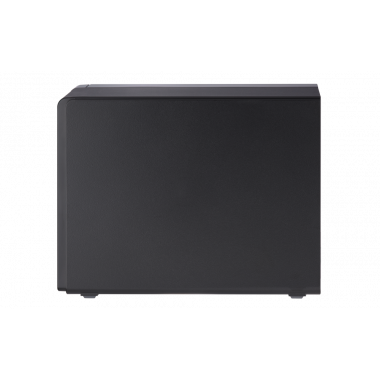

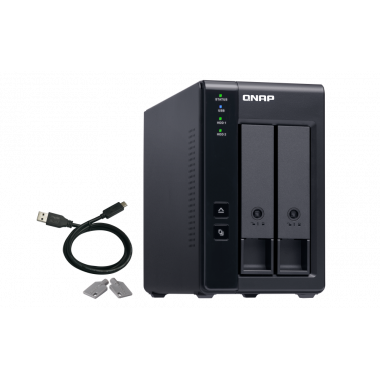

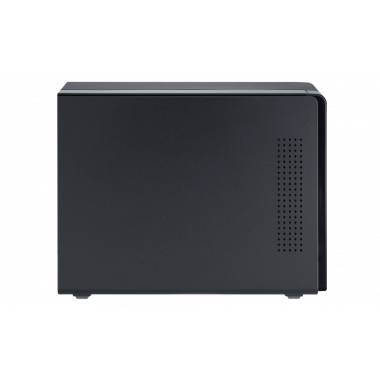

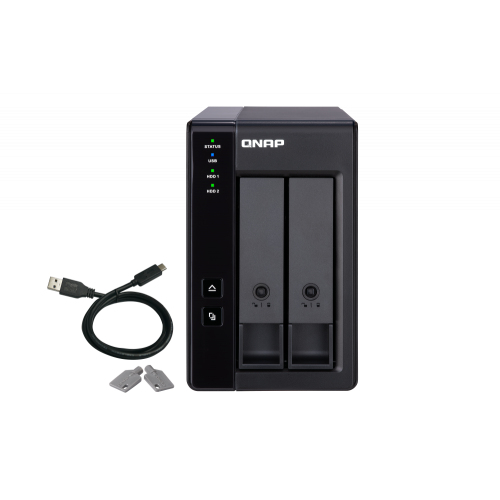

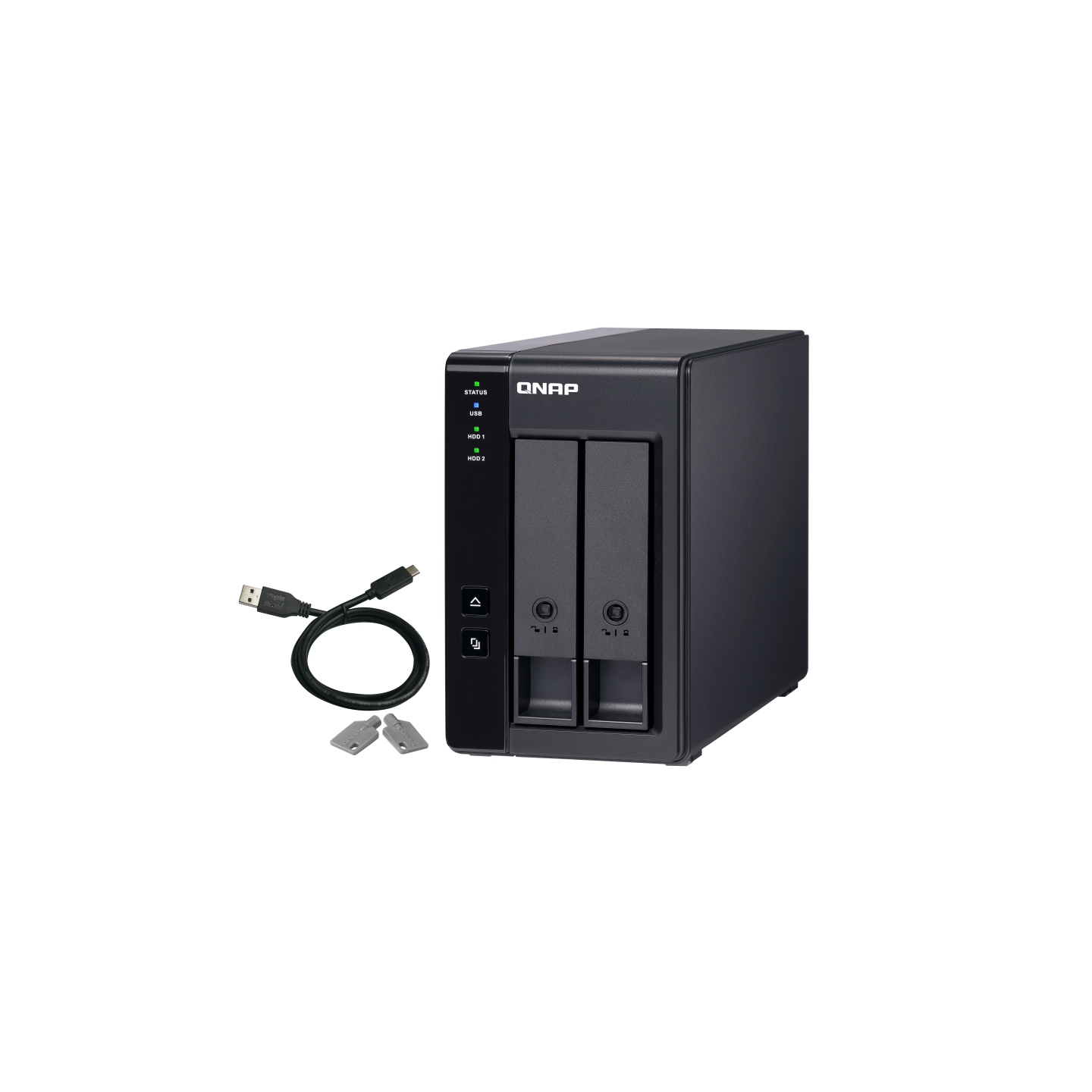

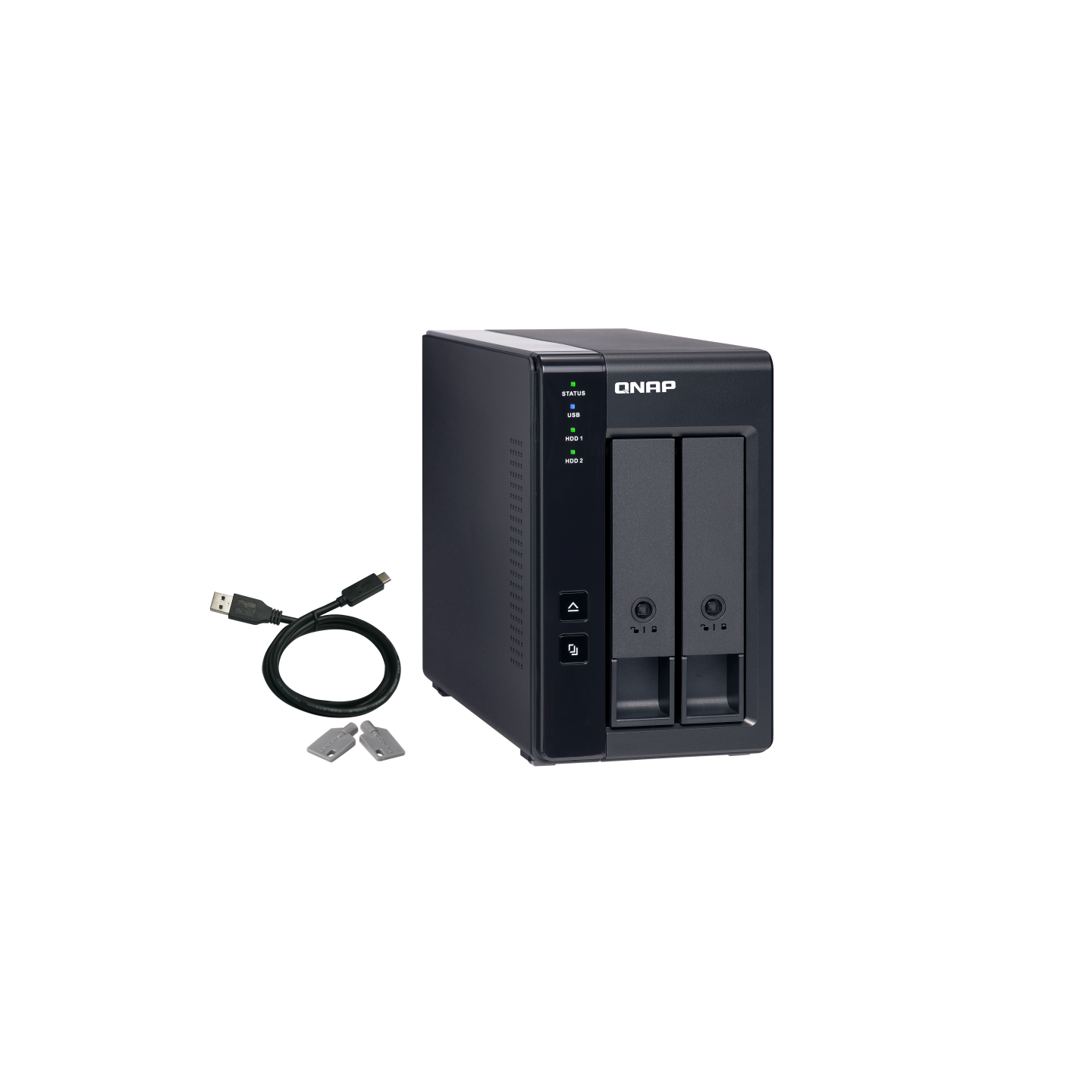

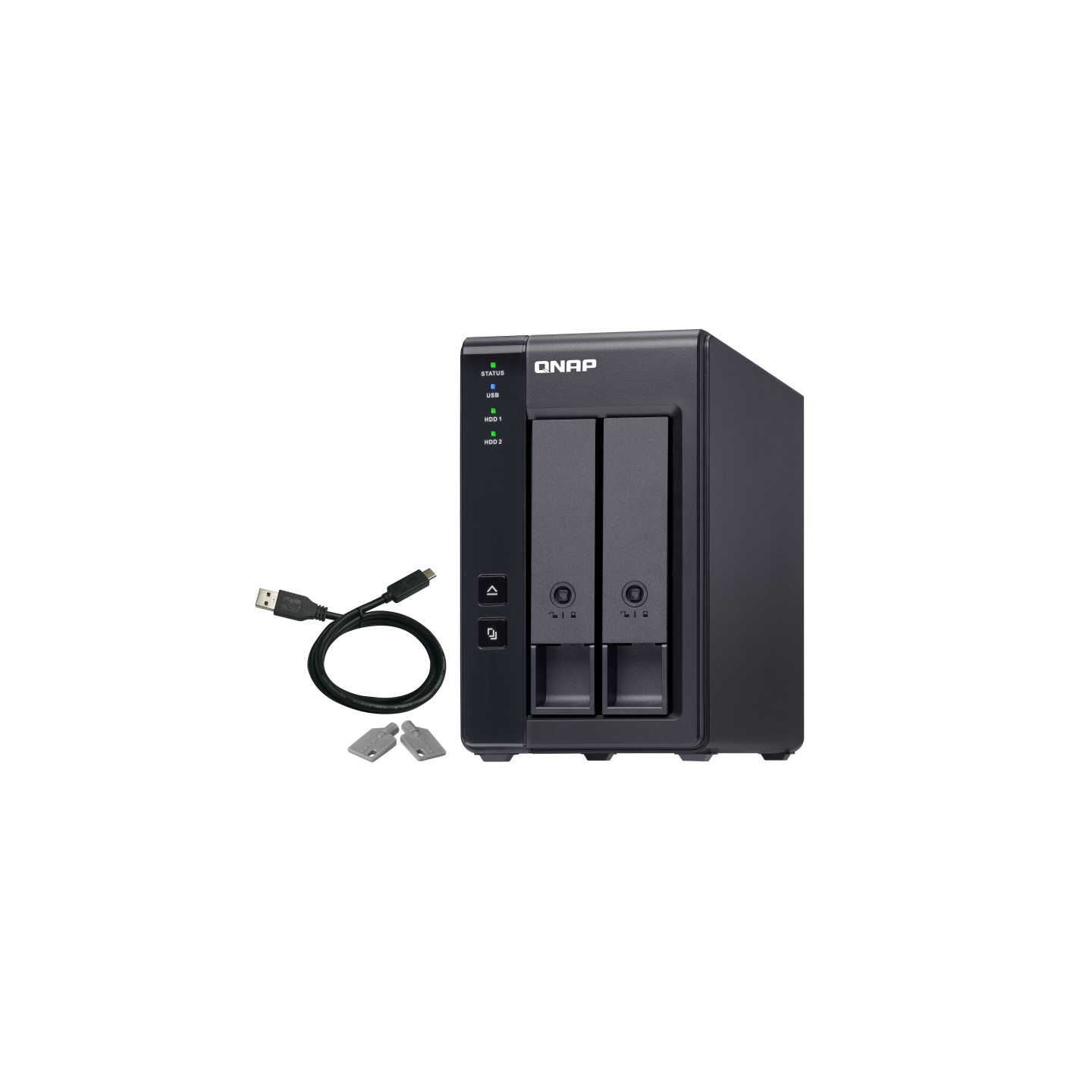

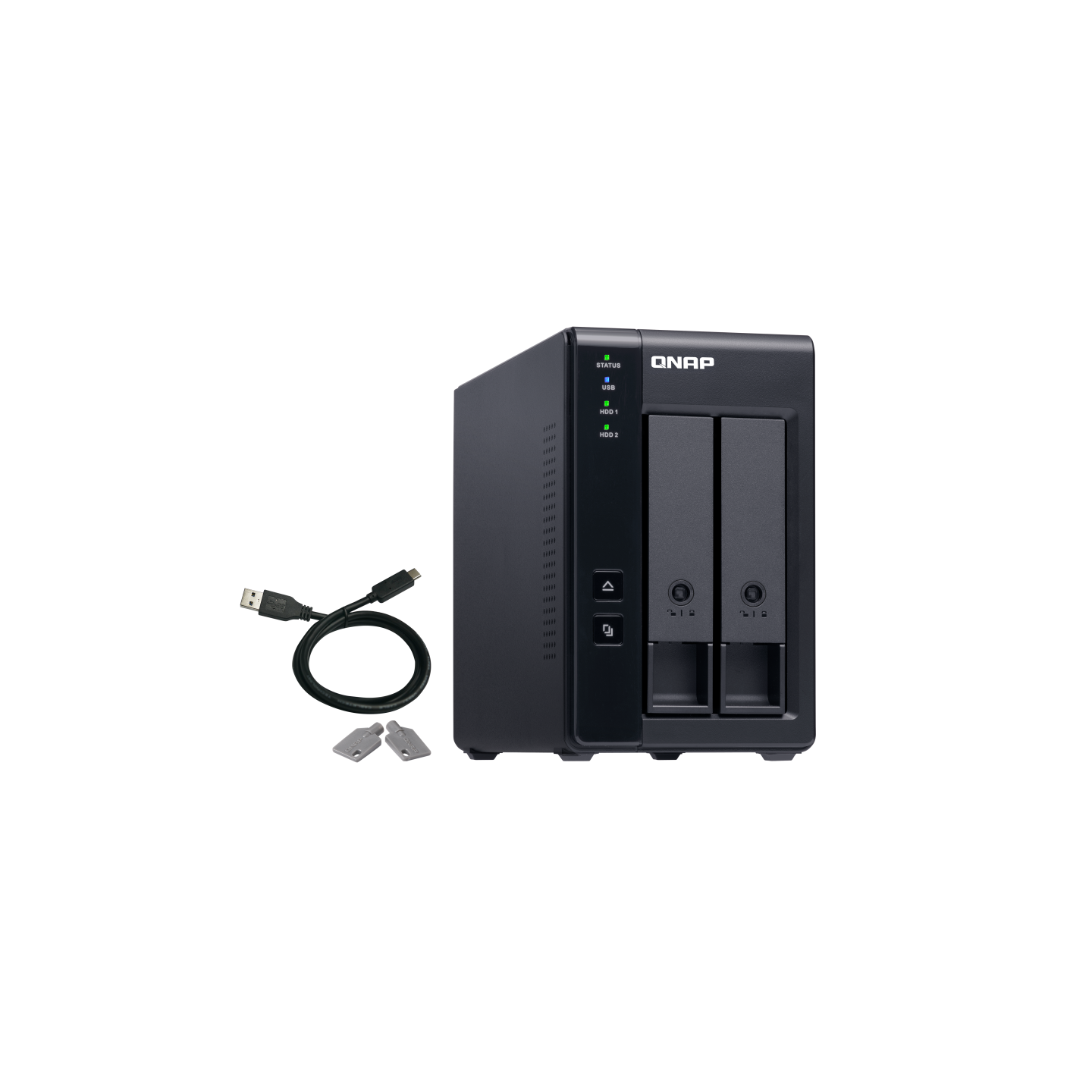

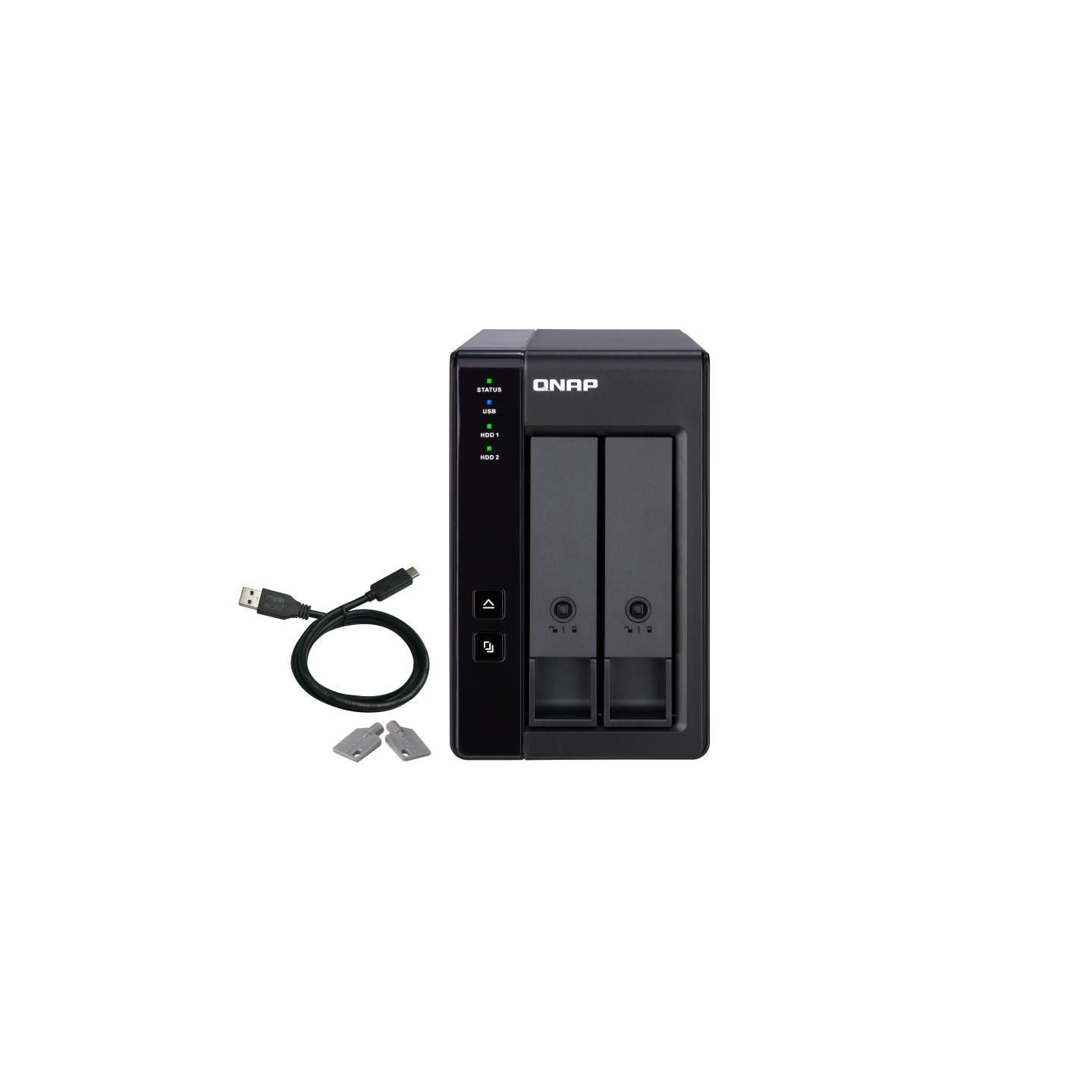

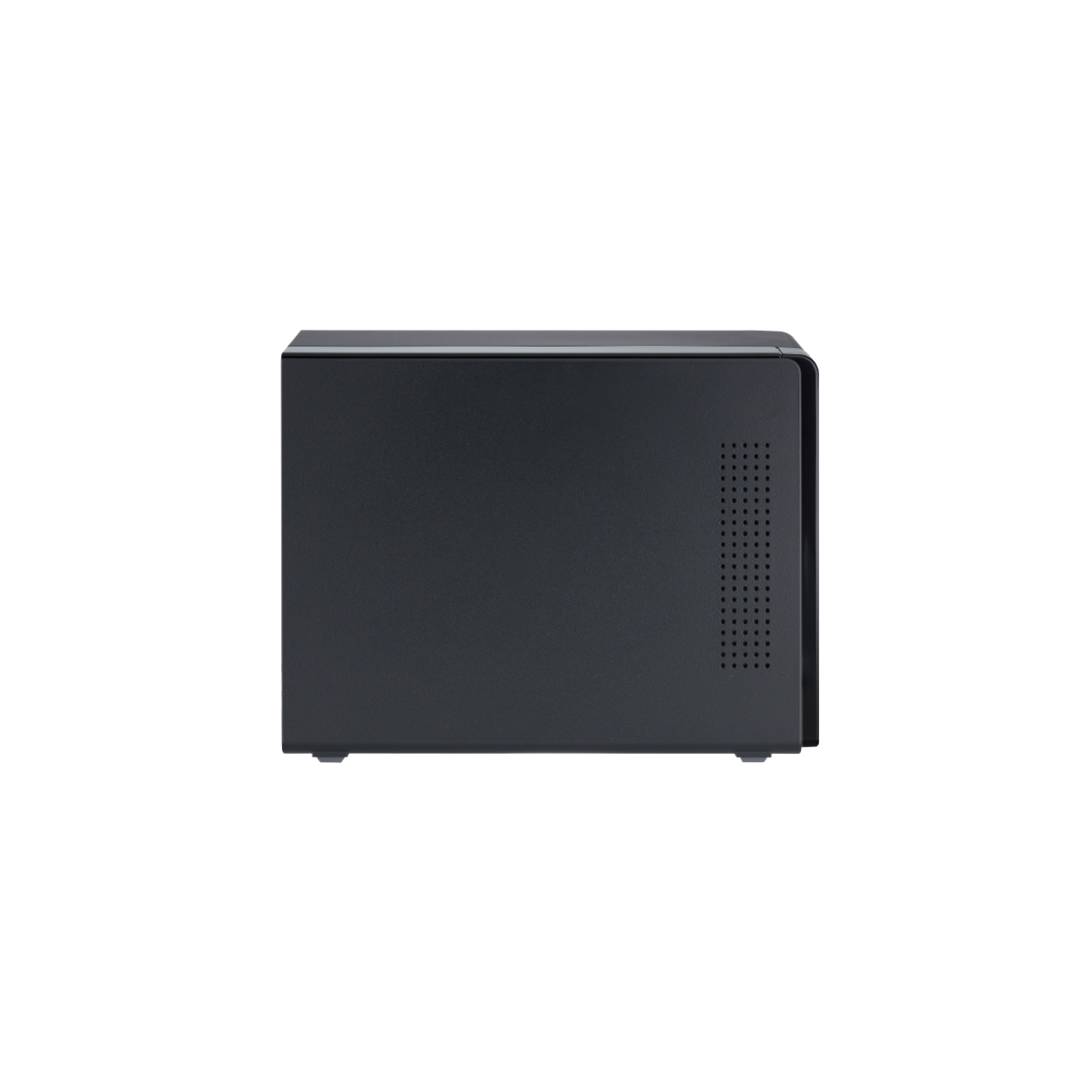

TR-002

JBOD Connection Interface USB

Main chip Microprocesador con RAID de hardware

Drive Bay 2 x 3.5 pulgadas

El sistema se envía sin HDD.

Para la lista de compatibilidad de HDD, por favor visite https://www.qnap.com/compatibility/

Drive Compatibility Bahías de 3,5 pulgadas:

3,5 pulgadas SATA 6Gb/s, 3Gb/s discos duros

2,5 pulgadas SATA 6Gb/s, 3Gb/s discos duros

2,5 pulgadas SATA 6Gb/s, 3Gb/s estado sólido discos duros

Solo puede usar un tipo de disco (HDD o SSD) en un grupo RAID. No se admite la combinación de diferentes tipos de disco en un grupo RAID.

TR-002 no admite el QDA-A2AR/QDA-A2MAR.

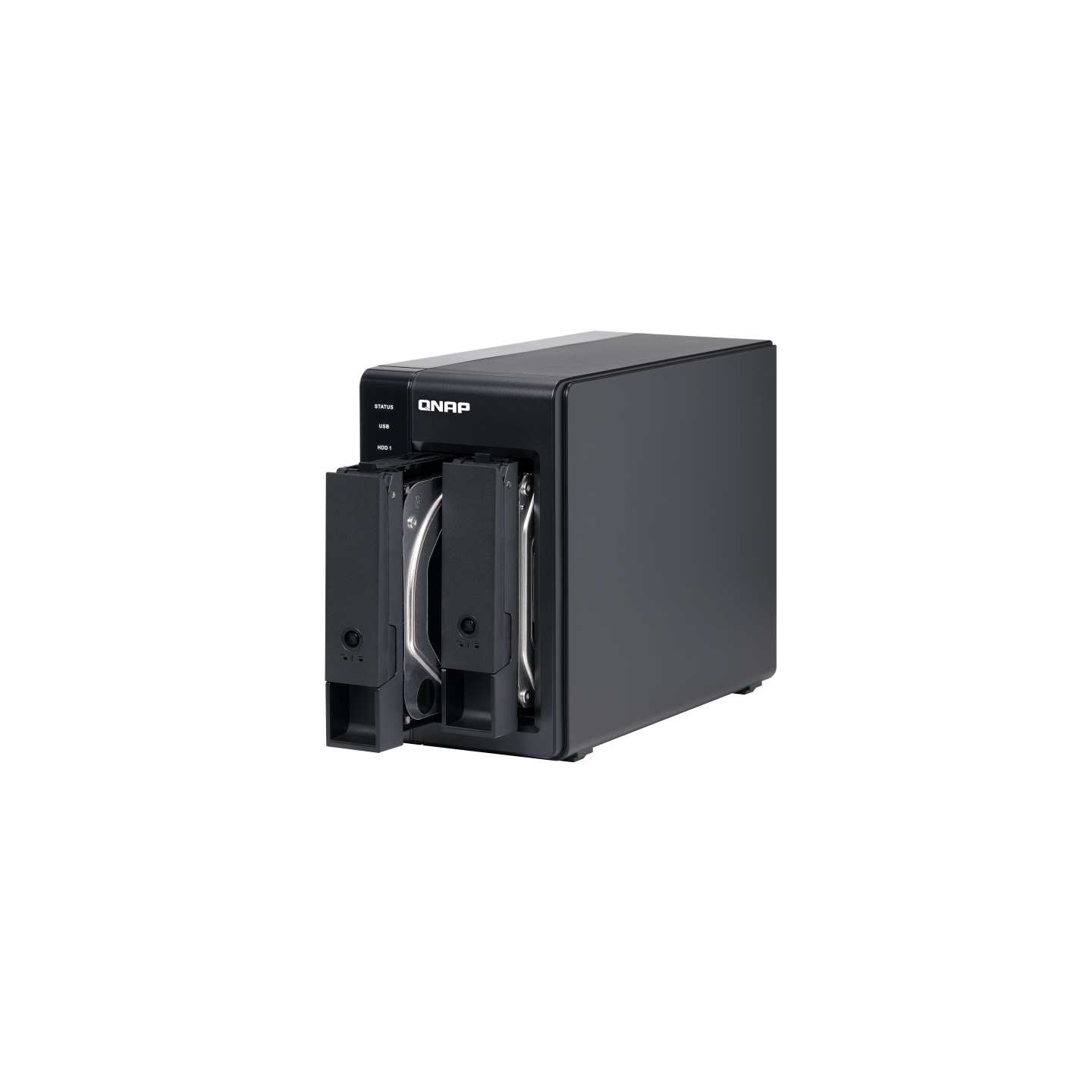

Hot-swappable

USB 3.2 Gen 2 (10Gbps) Port 1 puerto USB 3.2 Gen 2 Tipo-C 10Gbps

Form Factor Torre

Dimensions (HxWxD) 168.5 × 102 × 219 mm

Las dimensiones no incluyen la almohadilla del pie (la almohadilla del pie puede tener hasta 30mm / 1.18 pulgadas de altura dependiendo del modelo)

Weight (Net) 2.25 kg

Weight (Gross) 2.25 kg

Operating Temperature 0 - 40°C (32°F - 104°F)

Storage Temperature -20 - 70°C (-4°F - 158°F)

Relative Humidity 5~95% HR sin condensación, bulbo húmedo: 27˚C (80.6˚F)

Power Supply Unit Adaptador mínimo de 36W (12VDC), 100-240VAC

Power Consumption: HDD Sleep Mode 2.98 W

Power Consumption: Operating Mode, Typical 10.15 W

Probado con unidades totalmente llenas.

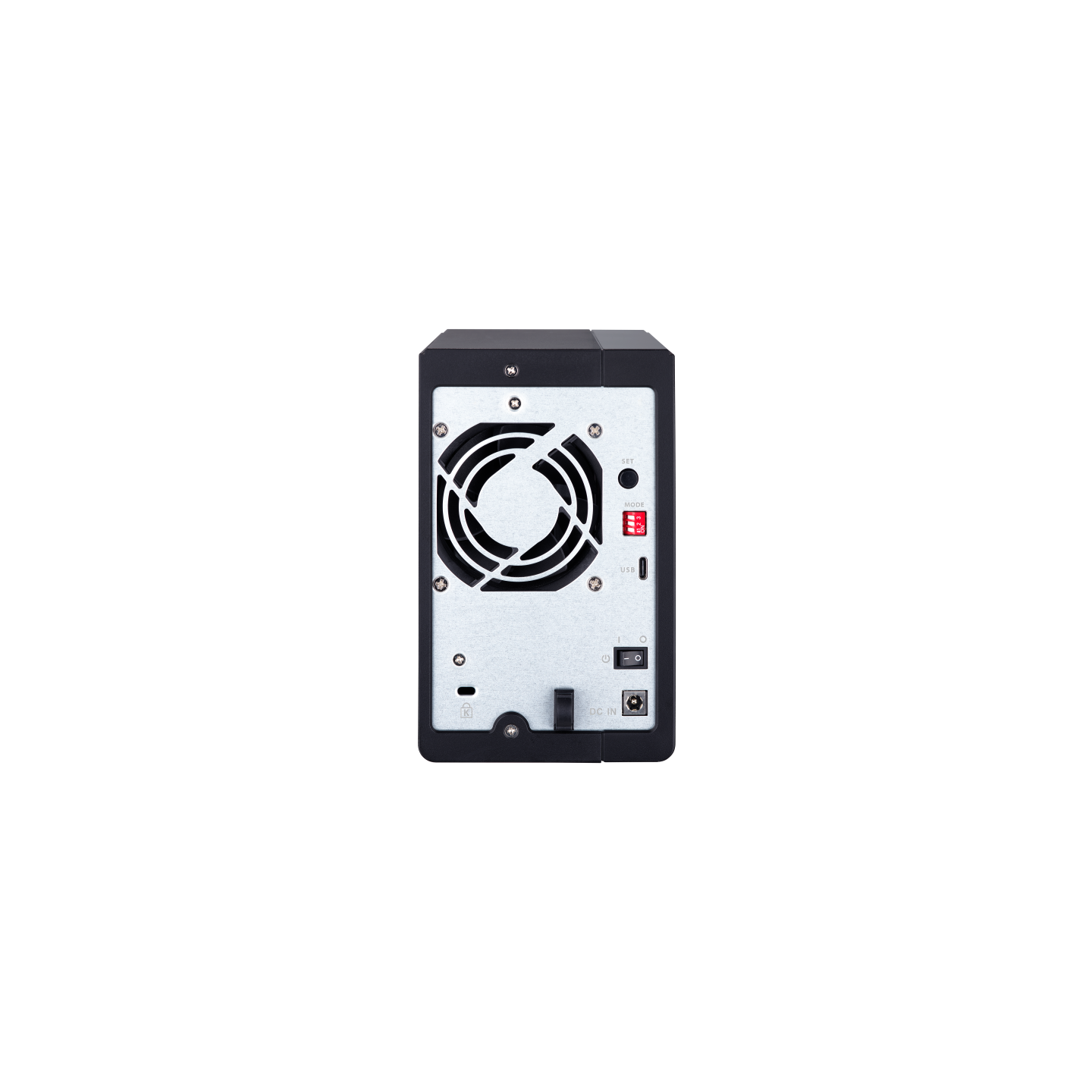

Fan 1 de 70 mm, 12 V de CC

System Warning Timbre

Kensington Security Slot

QTS / QuTS hero

Windows

Ubuntu

Mac

Used as Hardware RAID (DAS)

Standard Warranty 2

RAID 1

RAID 0

JBOD

Single Disk

Software

System modes

Individual, JBOD, hardware RAID 0/1, Software control (Software control requires a QNAP NAS or Windows/macOS utility)

Note: You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported.

Features

Disk modes: Individual, JBOD, RAID 0, RAID 1.

System, fan, and drive failure monitoring with LED and audio alerts.

System sleep* during USB cable disconnection and host device hibernation** or shut down.

*RAID rebuild delays the sleep.

**Some hosts may not be supported.

Minimum system requirements

QNAP NAS or PC with a USB Type-A or Type-C port

Minimum operating system requirements

QNAP NAS: QTS 4.3.6 (or later)

Windows: Windows 8.1 (or later), Windows Server 2012 R2 (or later)

Mac: macOS X 10.13 (or later)

System fan

5-speed automatic fan control

Software utility

Windows/macOS: QNAP External RAID Manager

Supported File Systems

NAS storage (EXT4), external hard drive (EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT*)

*Purchase of an exFAT driver license from the License Center is required.

QTS Storage Management Features

General & External Storage Mode

Overview device, disks, and RAID info and status

Support for disk S.M.A.R.T. monitoring

Determine location of enclosure using LEDs and system speakers

External RAID software configuration

RAID rebuild

RAID recovery

Firmware update

Format partition

Erase partition and device

NAS Storage Mode

The storage pools and volumes in the expansion enclosures are configured via the QTS operating system.

Volume and LUN snapshots - Snapshot Manager

Snapshot Cloning - Snapshot Replica - Snapshot Vault

Support for Windows Previous Versions (CIFS/SMB)

Software utility Features

QNAP External RAID Manager

Overview device, disks, and RAID information and status

Support for disk S.M.A.R.T. monitoring

Determine location of enclosure using LEDs and system speakers

Desktop notifications for device alerts

External RAID software configuration

RAID rebuild - RAID rebuild speed customization

RAID recovery - Firmware update

Notifications when new firmware and application versions are available

System event logs for troubleshooting

Export event logs to .csv file

Note: Actual performance may vary depending on operating environment and other factors, such as RAID mode, RAID configuration, disk model and capacity.
