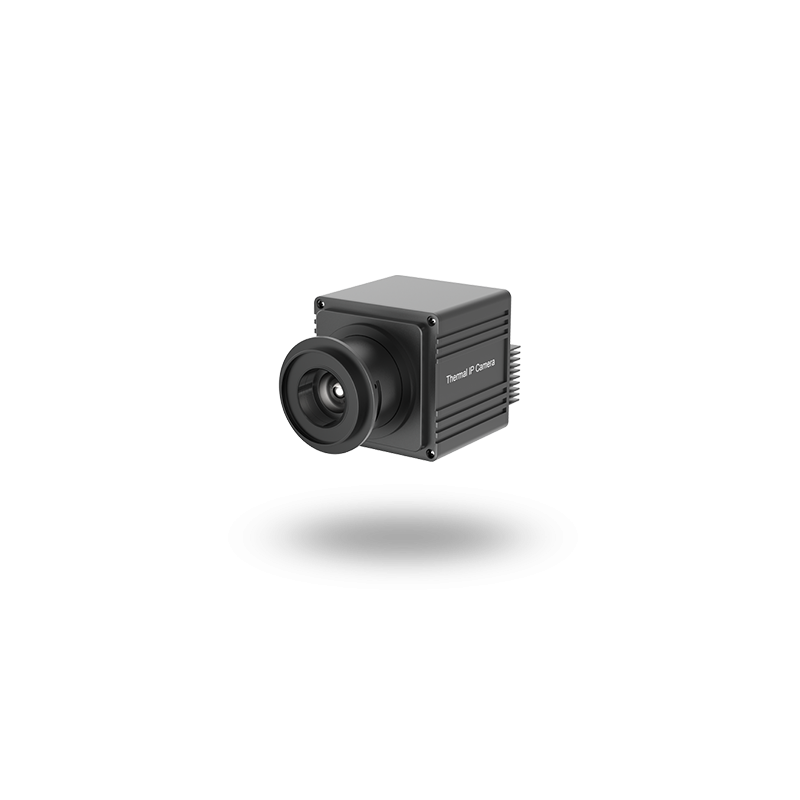

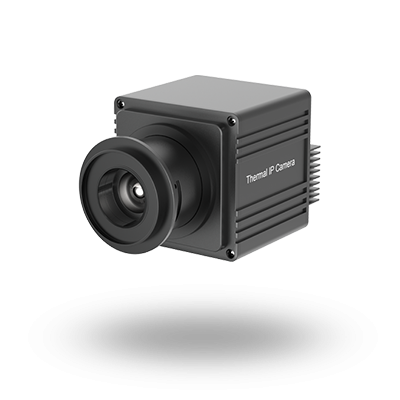

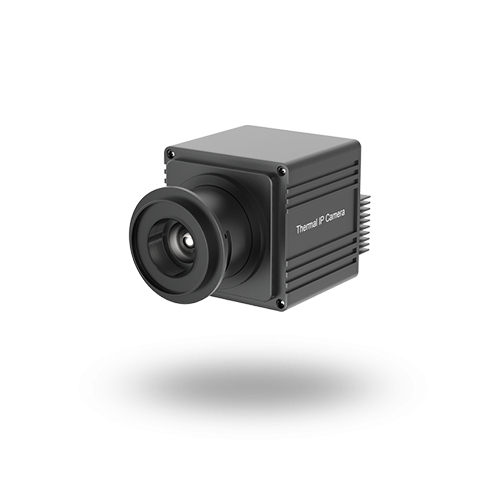

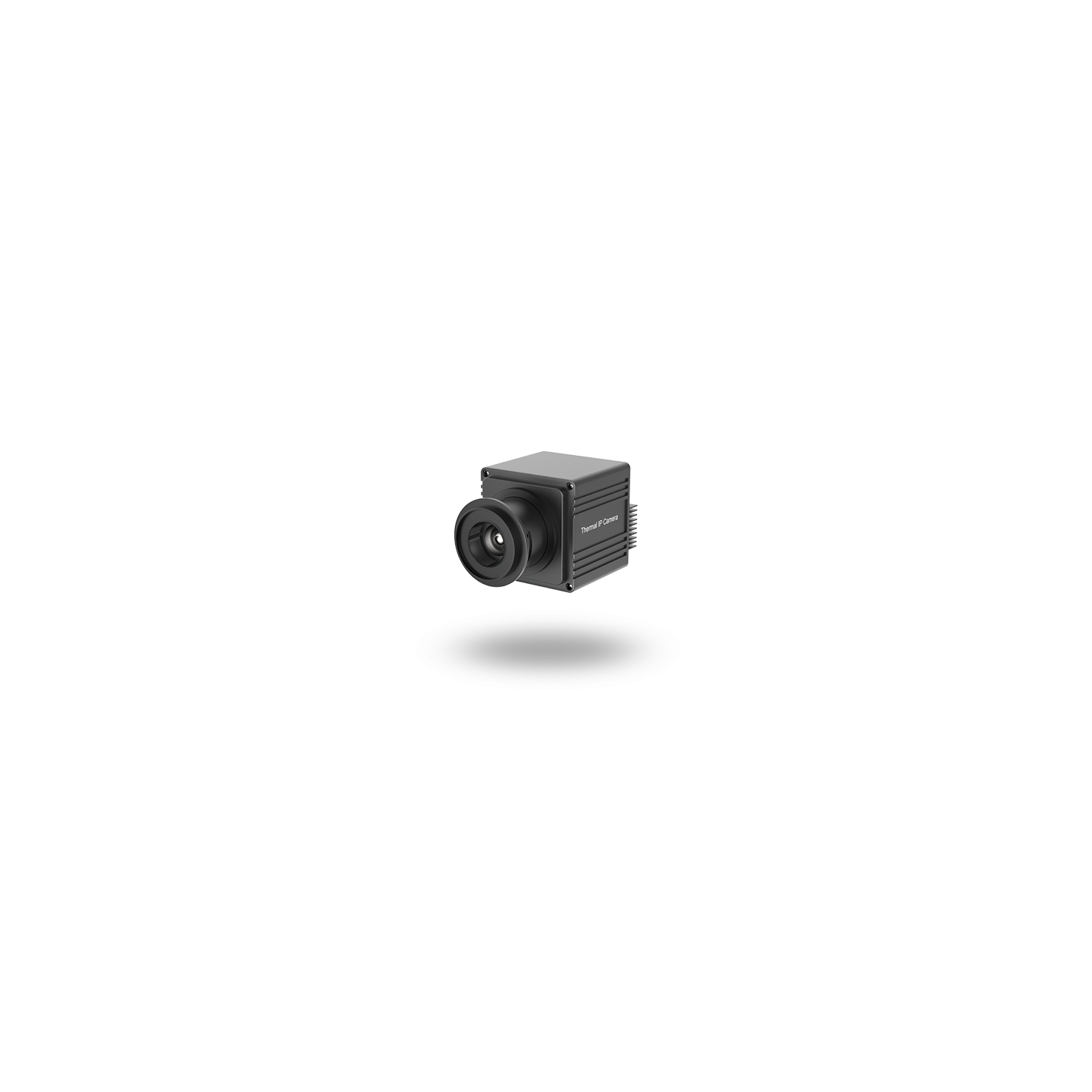

SUNELL SN-TPC4201AT/F (III)
SUNELL

SUNELL SN-TPC4201AT/F (III)

Cámara Térmica tipo box. Lente fija de 8/15/25/35/50 mm opcional

Contáctenos por este producto

Formulario de Contacto de SUNELL SN-TPC4201AT/F (III)

  • Micro bolómetro VOx no refrigerado con resolución de 400×300
  • Sensibilidad ≤40mK
  • Lente fija de 8/15/25/35/50 mm opcional
  • Soporta monitoreo de temperatura y alarma de excepción
  • Soporta 3 tipos de reglas de medición de temperatura (spot, line, area)
  • Rango de medición de temperatura: -20 °C ~ 150 °C (-4 °F ~ 302 °F)
  • Análisis inteligente: intrusión, cruce de una sola línea, cruce de doble línea, objeto a la izquierda, objeto eliminado
  • Mejora de la imagen DVE



Detalle de productos

Thermal Camera
Image Sensor Uncooled VOx Focal Plane Arrays
Resolution Sensor is 400×300. Image can be scaled up to 704×576
Pixel Pitch 17 um
Thermal Sensitivity (NETD) ≤ 40 mK
Spectral Range 8 ~ 14 um
Lens Type Fixed
Focus Control Manual Focus
Focal Length 8 mm 15 mm 25 mm 35 mm 50 mm
F No. F1.0 F1.0 F1.0 F1.0 F1.0
Angle of View H: 46°, V:35.3° H:25.5°, V:19.2° H:15.4°, V:11.6° H: 11°, V:9° H: 7.7°, V:5.8°
Detection Distance  235 m 441 m 735 m 1029 m 1471 m
(Fire: 1×1m)
Detection Distance  235 m 441 m 735 m 1029 m 1471 m
(Human: 1.8×0.5m)
Detection Distance  722 m 1353 m 2255 m 3137 m 4510 m
(Vehicle: 4×1.5m)
Recognition Distance  59 m 110 m 184 m 257 m 368 m
(Human: 1.8×0.5m)
Recognition Distance  180 m 338 m 564 m 789 m 1127 m
(Vehicle: 4×1.5m)
Video and Audio
Main Stream 704×576 @ 25/30fps
Sub Stream CIF @ 25/30fps
Bit Rate Control CBR/VBR
Bit Rate Main stream: 100Kbps ~ 6Mbps
Sub stream: 10Kbps ~ 1.5Mbps
Region of Interest Off / On (8 Zone, Rectangle)
Smart Encode Support
Audio Compression G.711: 8kbps, RAW_PCM: 16kbps
Image Setting Brightness, Sharpness, Contrast
Mirror Support
Pseudo-color Setting White-hot/Black-hot/Rainbow/Ironbow etc. up to 17 modes
DVE Image Enhance Support
Noise Reduction 2D/3D DNR
Privacy Masking Support
Smart Function
Smart Functions Motion detection, Disk alarm, I/O alarm, Temperature detection & alarm
Intelligent Analysis Intrusion, Single line crossing, Double line crossing, Object left, Object removed

Temperature Detection
Temperature Detection 3 temperature measurement rule types, 20 rules in total, 1 full screen, 19 others (spot, areas, line).
Temperature Alarm Over temperature alarm, Temperature difference alarm
Accuracy ±2℃ / ±2%
Response Time ≤ 30ms
Temperature Range -20°C ~ 150°C (-4°F ~ 302°F)
Temperature display mode Temperature target >5℃, Display absolute temperature value,
Temperature target ≤5℃, Display relative temperature value (temperature difference DEV = highest value - average)

Network
Protocols IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, 802.1x
Interoperability ONVIF, CGI, SDK
Max. User Access 10 Users
Web Viewer <IE11, Chrome, Firefox, Microsoft Edge
Web Language English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian

Interface
Network Interface 1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio Interface 1ch input, 1ch output
Alarm Interface 2ch input, 2ch output
RS485 Support
CVBS Interface BNC, 75 ohm
Reset Button Support
SD Card Slot Support, up to 128GB

General
Power Supply DC12V ±10%
Power Consumption Max 5 W
Working Temperature -40°C ~ 60°C (-40°F ~ 140°F)
Storage Conditions 0~ 90% RH
Certifications CE /FCC
Ingress Protection N/A
Casing Metal
Dimensions 154.7 × 70 × 70 mm (6.09 × 2.76 × 2.76 inch)
Net Weight 0.7 kg (1.54 lb) with 50 mm lens
